$299.00

Moving magnet, 0.3mm x 0.7mm elliptical stylus, aluminum cantilever and 3.0-mV output.

SKU: aae-Sumiko Moonstone Category: Tags: ,
Description

Description

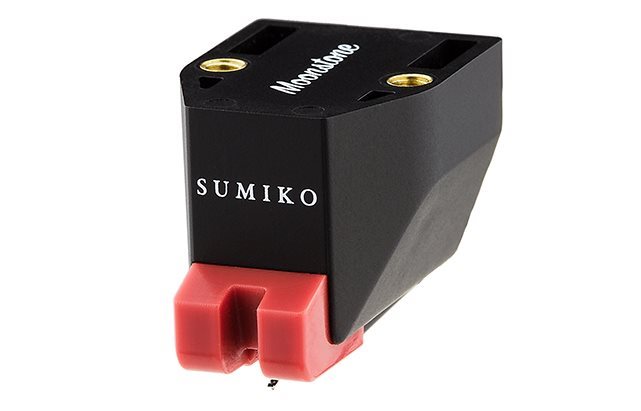

The Moonstone is an affordable high-performance moving magnet cartridge that utilizes the powerful mechanically-generated electromotive forces of the moving magnet to help give your playback extra punch and convincing realism. Exceptionally well-balanced and dimensionally dense, the breathtaking dynamics of the Moonstone outperform many comparably priced moving coil cartridges without requiring the huge investment in preamplification.

TECHNICAL SPECIFICATIONS

Cartridge Type:
Moving Magnet

Stylus:
0.3µM x 0.7µM Elliptical

Cantilever Material:
⌀0.5mm aluminum

Wire Material:
copper

Internal Impedance:
1,130Ω

Load Impedance:
47KΩ

Frequency Response:
12Hz – 33kHz

Output Voltage:
3mV @ 1kHz

Channel Separation:
30dB @ 1kHz

Channel Balance:
0.5dB @ 1kHz

Compliance:
12×10-6 cm/dyn @ 100hZ

Recommended Load Capacitance:
100pF – 200pF

Vertical Tracking Angle:
20°

Tracking Force:
1.8g – 2.2g

Recommended Force:
2.0g

Cartridge Weight:
6.5g

Replacement Stylus Unit:
RS Moonstone
RS Rainier
RS Olympia

Brand

Brand

Sumiko

Additional information

Additional information

Weight 1 lbs
Dimensions 3 × 3 × 3 in
