$3,999.95

SKU: aaf-soundsmith-Paua Mk II Category: Tags: ,
Description

Description

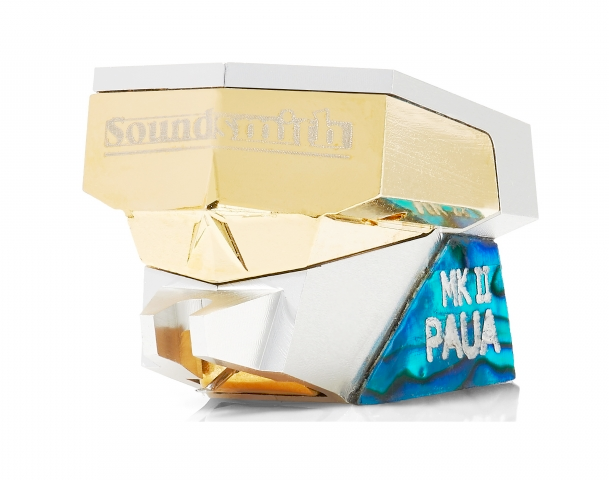

The NEW Paua MKII: adorned with sea shell to remind us of the beauty of the sounds of the world all around us. Nature healing nature.

The Paua is one of Soundsmith’s most highly regarded top of the line low output cartridges. It has won numerous accolades and praise from users and reviewers around the word, including an “Editor’s Choice Award” in 2015 from TAS. Now we introduce the new Paua MKII, employing a newly developed Aluminum alloy used to fashion the MKII’s cantilever into a precision acoustic and mechanical lever. It features stiffness in the ranges required, while providing critical damping in other sections of the acoustic spectrum. The reult is an even better Paua, a cartridge that gets raves from its owners, and can be fully rebuilt many times for $550  – a fraction of its original cost – as with all Soundsmith cartridges – 20% or less.

Featuring ultra-low internal moving mass, a specialized telescoping newly developed alloy cantilever and highly polished low mass nude Contact Line stylus, the Paua MKII will add a unique quality of warmth and smoothness to any analog system without leaving behind all the delicate musical details you want and need to hear. The Paua MKII reaches new heights of stylus control and performance, as is confirmed by its incredibly high channel separation figures.

We have accomplished a work of art with the Paua MKII design, resulting in an unparalleled and sublime performance.

Also available in dual-coil mono, as with all Soundsmith Fixed Coil designs.


Specifications

Cartridge Type: Fixed Coil

Stylus Type: Contact Line

Output: Low

Output Voltage: .4 mV

Available As Dual Coil Mono: Yes

Additional Specifications

Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: Nude Contact Line SELECTED
Cantilever: Telescoping Aluminum Alloy
Recommended tracking force: 1.7 to 1.9 grams
Effective tip mass: 0.30 mg
Compliance: 10 μm/mN (low compliance)
Frequency response: 20-20,000 Hz ± 1.0 dB
Channel separation (stereo only): 1000 Hz >34 dB 50-15,000 >25 dB
Channel difference: Output Voltage: ≥0.4 mV
DC Resistance (DCR): 10-11 Ω each channel
Coil: 2.75 mH each channel
Suggested Preamp Gain: 58-64 dB
Soundsmith Recommends: MCP2 Variable Loading Preamp
Cartridge weight: 10.25 grams
Stylus to Mounting Hole Offset: ≈ 10mm (0.4″)
Loading: ≥ 470 Ω

Brand

Brand

Soundsmith

Soundsmith has designed and manufactured – and repaired – varied types of audio equipment for over 35 years. Dedicated to producing the world’s most accurate vinyl sound reproduction, Soundsmith recently introduced its new top-of-the line moving Iron cartridge, the VOICE, which is touted as Soundsmith’s best sounding MM-preamp cartridge yet. As the nationally recognized leader in the field of high-end audio, home theater and home electronics, Overture is proud to include Soundsmith in our presentation of high-performance components. If you are interested in purchasing a Soundsmith product, you can trade-in any other brand electronic component or speaker on it by filling out Overture’s Trade-In Form.

Additional information

Additional information

Weight 1 lbs
