From $2,750.00

Reference Isolation Base

If you have a trade-in, request Trade-in Price.

Product Description

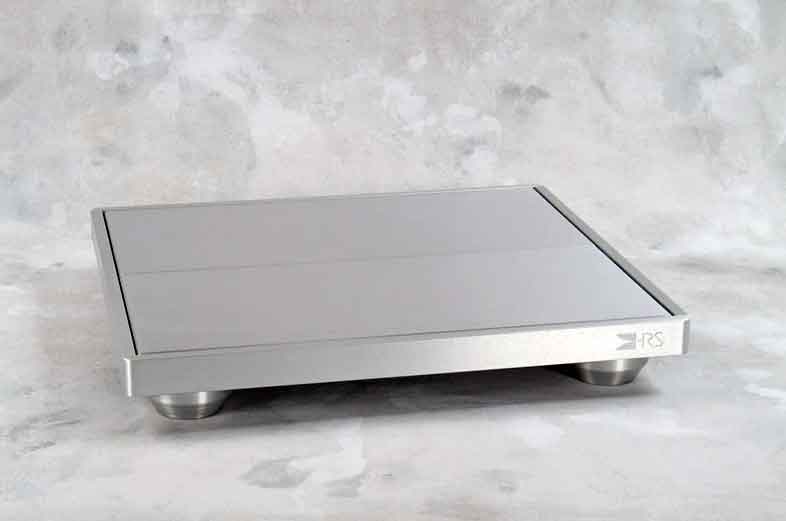

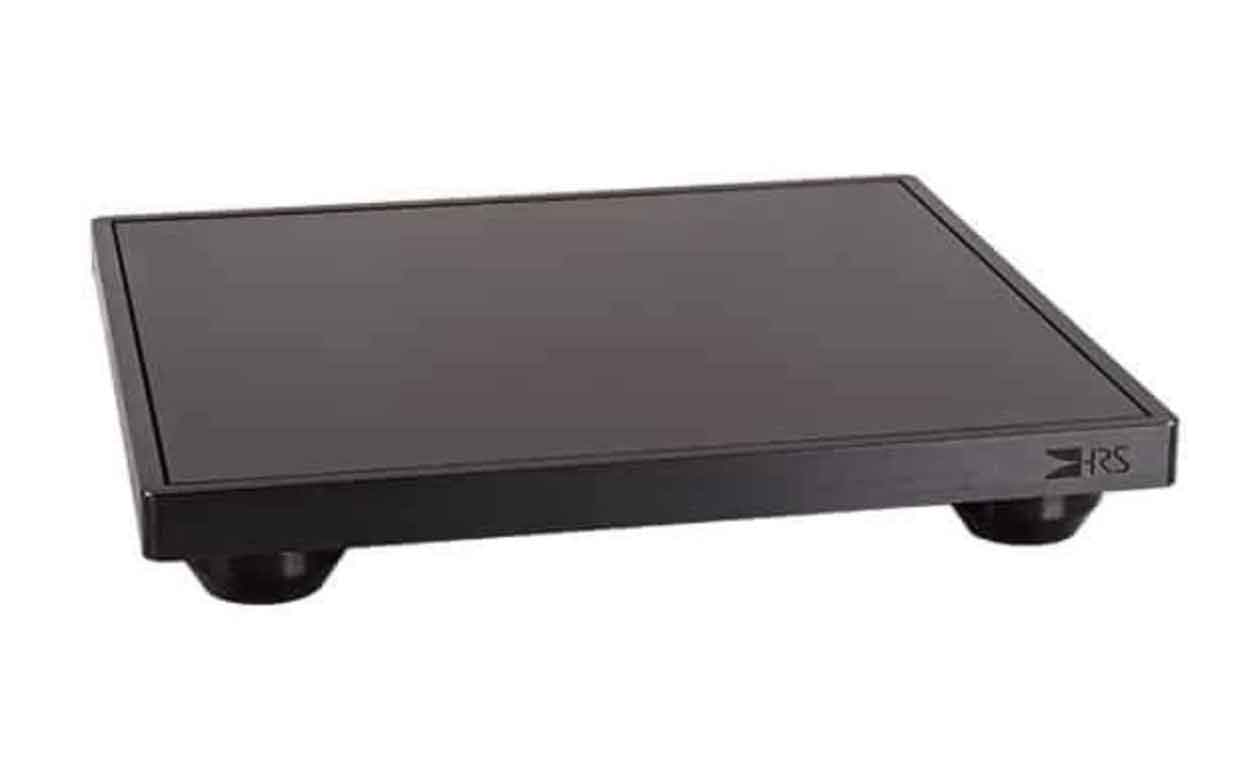

The HRS S3 Isolation Base is a highly innovative design that eliminates noise, revealing a new level of musical performance.

It is manufactured from seven different materials including a proprietary resonance control stage with billet machined aircraft aluminum trim and a new plinth construction that increases plinth mass by 7 pounds, an additional 16 percent over the previous S1 Isolation Base design.

The new 51 lb HRS S3 (1921 size) plinth construction is manufactured by laminating in a vacuum press alternating layers of high density fabric reinforced resin and non magnetic stainless steel plates on both sides of a decoupled mass energy dissipation core system. The very top skin of the S3 plinth is the same high quality scratch resistant surface layer used in the R3X Isolation Base providing an identical cosmetic match. The HRS S3 also uses the same primary isolation stage of the reference level M3X model and thus provides exceptional performance and a great performance value.

The broadband noise reduction system in the S3 is optimized to the weight of your component. The weight range can also be easily modified in the future to keep your system operating at peak performance. The low profile 3-inch high compact design also minimizes space requirements and keeps the visual focus of your system on the component. The S3 Isolation Bases can be used on any surface or audio stand and integrates directly into any of the HRS Audio Stand Frames.

  • Model: S3-1719
  • Dimensions: 17″ x 19″ x 3″
  • Base Weight: 42 LB
  • Orange Load Range: 0 – 30 LB (0 – 13.8 KG)
  • Red Load Range: 31 – 50 LB (13.9 – 22.8 KG)
  • Green Load Range: 56 – 95 LB (25.2 – 43.3 KG)
  • Blue Load Range: 96 – 150 LB (43.4 – 68.0 KG)
  • Model: S3-1921
  • Dimensions: 19” x 21” x 3”
  • Base Weight: 51 LB
  • Orange Load Range: 0 – 25 LB (0 – 11.5 KG)
  • Red Load Range: 26 – 45 LB (11.6 – 20.6 KG)
  • Green Load Range: 46 – 85 LB (20.7 – 38.7 KG)
  • Blue Load Range: 86 – 140 LB (38.8 – 63.5 KG)

Brand

HRS

Harmonic Resolution Systems’ passion for enjoying the full magic of a musical performance was the impetus behind HRS’s development of a wide range of products to support your system and allow it to reach its full potential. HRS’ modular products are designed to provide better isolation from structure-borne energy or signal that can cause microphonic distortion and degrade sonic performance. HRS’s Chief Engineer, Michael Latvis, has over 35 years of engineering and product development experience, with a specialty in vibration analysis and isolation systems for commercial & military aircraft, and missile defense systems, and he holds a number of patents for audio components and isolation systems. When it comes to audio equipment support and effective isolation of the audio signal, there is no one-size-fits-all solution; HRS’s modular, adaptable approach provides an “equipment support tool kit” from which you can pull the pieces that your system’s circumstances demand, and your wallet allows You don’t need a complete rack to start enjoying the benefits of HRS’s expertise; adding the Nimbus or Vortex couplers and Damping Plates to an RXR rack can immediately lift audio system performance substantially. Overture can customize an HRS audio support system to suit your needs now and into the future.

Please contact us for available rack configurations and pricing.
