Esoteric Grandioso N1

From $45,000.00

The Ultimate Network Streamer

If you have a trade-in, request Trade-in Price.

No Sales Tax in Delaware

        Talk to our product specialists:  302-478-6050

SHARE ON:

Product Description

In music, Grandioso represents more than just a style.
It embodies grandeur, majesty, and a sense of dignified brilliance.
It’s a term that resonates with those who seek perfection,
capturing the essence of something truly extraordinary.

Esoteric Grandioso series draws inspiration from this musical ideal,
delivering audio experiences that are nothing short of majestic.
Crafted for connoisseurs who demand the pinnacle of performance,
it transforms every listening moment into a masterpiece.

Since its founding in 1987, Esoteric has been a trailblazer in high-end audio innovation, earning global recognition as the pinnacle of Japanese audio excellence. Renowned for pushing the boundaries of master sound reproduction, Esoteric combines groundbreaking audio engineering with an unwavering pursuit of perfection.

Each Esoteric masterpiece is a testament to “museum-quality” craftsmanship, where precision engineering seamlessly blends with artistry. Esoteric products are not merely audio equipment; they are works of art, designed to celebrate the beauty of music in its purest form. Every detail from cutting-edge audio technologies to breathtakingly elegant designs is crafted to honor the dignity of music reproduction.

In classical music, a phrase that indicates how a piece of music should be played is called an expression mark. For example, “cantabile” (as if singing), “legato” (smoothly), and so on. A flagship model should have the dignity and stature of a top-of-the-line product. We named it “grandioso” (grand, majestic, dignified), which we likened to the expression mark of classical music.

Since its launch in 2013, the Grandioso series has established itself as an icon of innovation in high-end audio, introducing a number of groundbreaking technologies. These include the legendary Super Audio CD transport mechanism VRDS-ATLAS, the proprietary Master Sound Discrete DAC and Master Sound Discrete Clock built on unique discrete circuitry, the advanced Esoteric Network Engine G4, the revolutionary Esoteric MagneDrive System, the MC Balanced Current Input System, and the ES-Link 5 / ES-Link Analog signal transmission technologies.

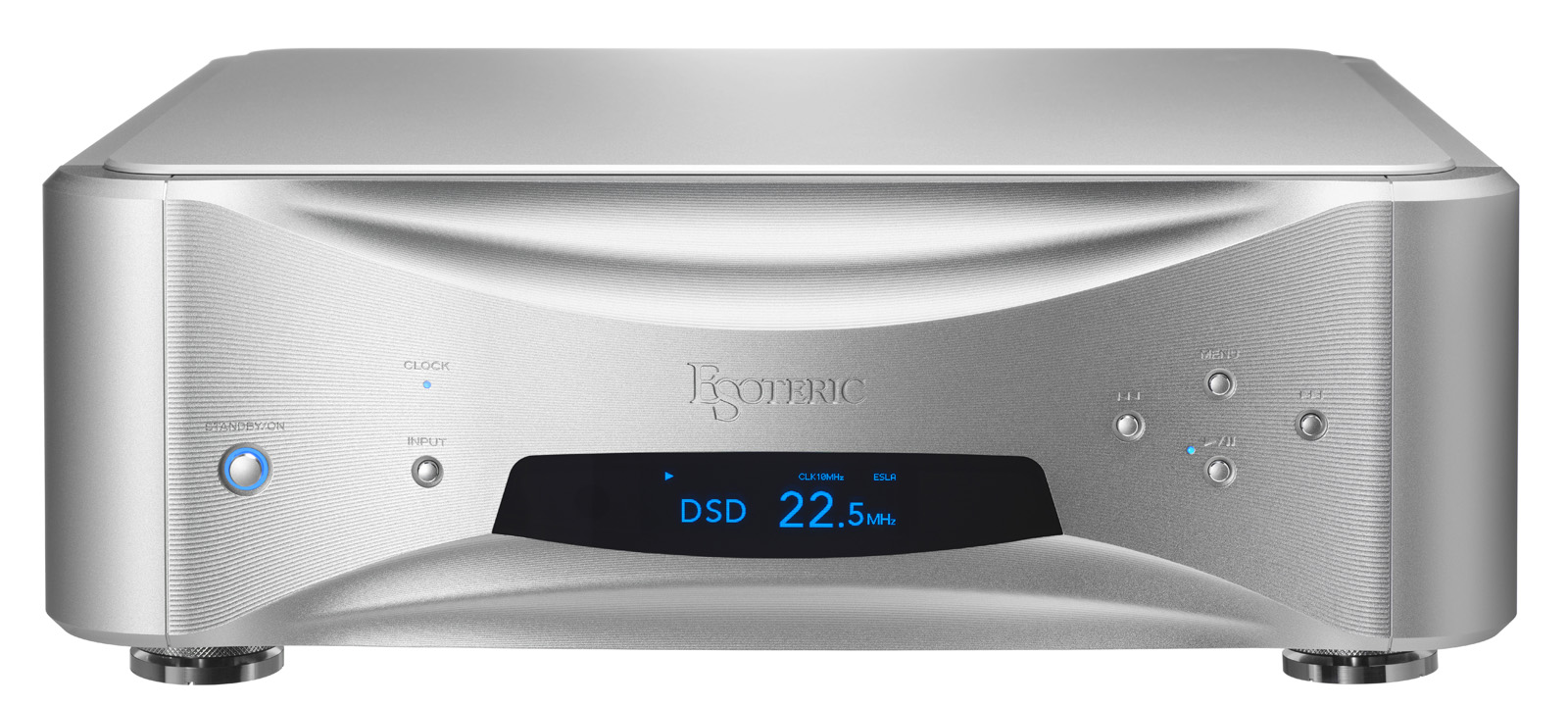

The Grandioso N1 is a Network Streamer / DAC designed to deliver the finest high-quality streaming audio. It incorporates the newly developed Master Sound Discrete DAC G2 converter circuit and the Esoteric Network Engine G4, originally developed for the flagship Grandioso N1T.

Esoteric first introduced the unique Master Sound Discrete DAC in 2019. Now redesigned as the G2 (Generation 2), it has evolved to new heights while preserving its renowned musicality.

The next-generation Esoteric Network Engine G4 features an SFP port and delivers powerful processing capabilities with high-fidelity sound worthy of a true flagship model.

Meticulously engineered, the Grandioso N1 follows the design philosophy of the Grandioso series. Though housed in a single stereo chassis, its internal DAC employs a fully dual-mono configuration with completely independent power supply sections for left and right channels. The large-scale architecture incorporates five independent linear power supplies dedicated to the left and right DACs, the network engine, the digital circuitry, and the microcomputer circuitry. This configuration achieves a smooth, full-bodied sound reminiscent of vinyl playback.

Your Gateway to the World of Music – From the comfort of your listening chair, the Grandioso N1 connects you to all the music in the world. Stream effortlessly and immerse yourself in a luxurious musical journey with breathtaking sound quality.

Grandioso N1 – Key Features



  • Network Streamer / DAC: Designed for High-End digital music streaming and file playback.
  • 4th-Generation Esoteric Network Engine G4: Supports native DSD 22.5 MHz playback; equipped with SFP port.
  • Master Sound Discrete DAC G2: New-generation FPGA based Multi-Level ΔΣ DAC, fully designed and manufactured in-house using precisely selected discrete components.
  • ES-Link Analog: Esoteric’s proprietary current signal link with preamp, provides super authentic sound.
  • Independent ×5 Linear Power Supplies (Dual Mono DACs/Network/Digital Audio/Microcomputer): Provides powerful clear sound.
  • Low-Feedback Discrete DC Power Regulator: Contributes to live and open sound quality.
  • External Power Supply Connectivity: Compatible with the Grandioso PS1, offering upgradability for even higher sound quality.
  • ES-Link5: Esoteric’s proprietary ultra-wideband HDMI cable link with Grandioso P1X SE SACD transport.
  • Wide Range of Digital Connectivity: ES-Link5 ×1 [L/R], USB ×1, XLR ×1, Coax ×1, Opt ×1.
  • Music Server Function: Two USB drives can be connected.
  • Master Sound Discrete Clock for Digital Player: Ultra-high precision internal clock circuit.
  • 10MHz Clock Sync Capability: Compatible with the Grandioso G1X master clock.
  • Wide Range of Supported File Formats: DSF, DSDIFF, FLAC, ALAC, WAV, AIFF, MQA, MP3, AAC.
  • Esoteric Sound Stream App: Provides extremely comfortable operation on smartphone/tablet.
  • Support for Multiple Streaming Services: Tidal, Tidal Connect, Qobuz, Qobuz Connect, Roon, Spotify.
  • Multi-Layer Chassis: Prevents interference between circuit components.
  • Semi-Floating Top Panel: Enhances sonic openness.
  • Advanced Isolation Feet: Provides focused sound and an open soundstage

Spec description

Network section
Supported file formats
PCM Lossless FLAC, ALAC, WAV, AIFF, MQA
DSD Lossless DSF, DSDIFF (DFF) , DoP
Compressed audio MP3, AAC
ETHERNET port 1 (1000BASE-T)
SFP port 1 (1000BASE-T)
USB DRIVE port USB2.0 or higher recommended 1 (TYPE-A) , 1 (TYPE-C)
Supported file system FAT32 or NTFS, Single partation
Maximum current supply 0.5A each
Supported sampling frequencies
PCM 44.1 to 768kHz, 16 / 24 / 32bit
(In addition to 32-bit integer format, files that use 32-bit floating format can also be played)
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
Digital audio inputs
ES-LINK 1 (L/R)
Input signal formats
Linear PCM 44.1k to 768kHz, 48bit (ES-LINK5 format)
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (ES-LINK5 format)
XLR 1
Input level 5.0Vp-p
Input impedance 110Ω
Input signal formats
Linear PCM 32k to 192kHz, 16 / 24bit (AES/EBU format)
DSD 2.8MHz (ES-LINK1, ES-LINK2, DoP format)
RCA 1
Input level 0.5Vp-p
Input impedance 75Ω
Input signal formats
Linear PCM 32k to 192kHz, 16 / 24bit (IEC60958 format)
DSD 2.8MHz (DoP format)
OPTICAL 1
Input level –24.0 to –14.5dBm peak
Input signal format
Linear PCM 32k to 192kHz, 16 / 24bit (IEC60958 format)
DSD 2.8MHz (DoP format)
USB 1 (TYPE-B) USB2.0 or higher recommended
Input signal format
Linear PCM 44.1k to 384kHz, 16 / 24 / 32bit
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz
Clock sync input
BNC 1
Input impedance 50Ω
Supported input frequency 10MHz (±10ppm)
Input level
Rectangle wave TTL level, or equivalent
Sine wave 0.5 to 1.0Vrms
External control input
Trigger input (TRIGGER IN) 3.5mm mono mini jack× 1
Input level 12V, 1mA
Analog audio outputs
XLR/ES-Link Analog 1 pair (L/R)
Maximum output level 5.0Vrms (at 1kHz, 10kΩ load)
Output impedance 50Ω
RCA 1 pair (L/R)
Maximum output level 2.5Vrms (at 1kHz, 10kΩ load)
Output impedance 18Ω
Audio performance DSD 2.8MHz, 0dB, DSDF=F2, XLR output
Frequency responce 5Hz to 30kHz (–3dB)
S/N ratio 113dB (A-Weight)
Distortion 0.001% (1kHz)
General
Power supply
Europe AC220-240V, 50Hz
US/Canada AC120V, 60Hz
Korea AC220V, 60Hz
Power consumption 38W (in standby: 0.3W)
External dimensions (W×H×D) 445 × 162 × 447mm / 17 ⅝” × 6 ½” × 17 ⅝” (including protrusions)
Weight 27.8kg / 61 ⅜ lbs.
Included accessories Power cord × 1
Cap for DC IN terminal × 2
Owner’s manual × 1
Warranty card × 1

Specifications and appearance are subject to change without notice.

Brand

Esoteric Grandioso

Since 1987, Esoteric has pursued a path dedicated to being a superior high-end audio/video brand focused on introducing components of the best value by merging innovative, proprietary recording and replay technologies. In order to meet the desires of musical and visual connoisseurs who are seeking new levels of excitement, Esoteric’s mission has been to continue to develop and release new products that improve upon the "state of the art", from highly acclaimed pure audio/video source devices to Super Audio CD and DVD components. Esoteric applied its no-compromise philosophy with the same intense consideration to its flagship Grandioso series to produce the next dimension of sound and audio immersion. With the Grandioso series, Esoteric sought to eradicate ANY distortions and colorations by taking a fresh look at entrenched norms and design elements, and by scrutinizing every last design detail – no matter how minute. All of the design tweaks, too numerous to elaborate here, yield an exceptional sonic purity that sweeps away distractions and enables listeners to experience an unprecedented level of musical detail and stunning visual presentation. As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Esoteric audio components, selling customers the best audio components from Esoteric in Sales Tax Free Delaware. Interested in purchasing a new Esoteric product? You can trade-in any component towards an Esoteric audio component by filling out Overture's Trade-In Form.
