$24,000.00

Super Audio CD/CD Player
If you have a trade-in, request Trade-in Price.



Category: Tags: ,

Product Description

Since the first debut of our K-01 and K-03 Super Audio CD Players, Esoteric’s integrated digital players have captivated listeners with their unrivaled playback of musical sources. They have also gone on to win numerous awards as they have come to be regarded as the gold standard of digital players around the world. The new Esoteric K-01XD boasts even more advanced features, combining two innovative technologies originally developed for Esoteric’s flagship Grandioso K-1X model: VRDS-ATLAS, the superlative Super Audio CD transport mechanism, and Master Sound Discrete DAC, designed completely in-house by ESOTERIC to provide even more enhanced playback from digital musical sources.

The incredible dynamic range and resolution achieved by these two technologies deliver thrilling reproduction of symphonic crescendos while reproducing an expansive spectrum of tones and faithfully rendering the subtle details of music with breathtaking depth and vivid realism. This broad versatility enables anyone to confidently enjoy an endless array of musical genres, from silky-smooth arias to pounding rock tunes. Now you too can fully experience a sound brought to life in a new pedigree of components from the name that has captured the hearts of music enthusiasts the world over: ESOTERIC.

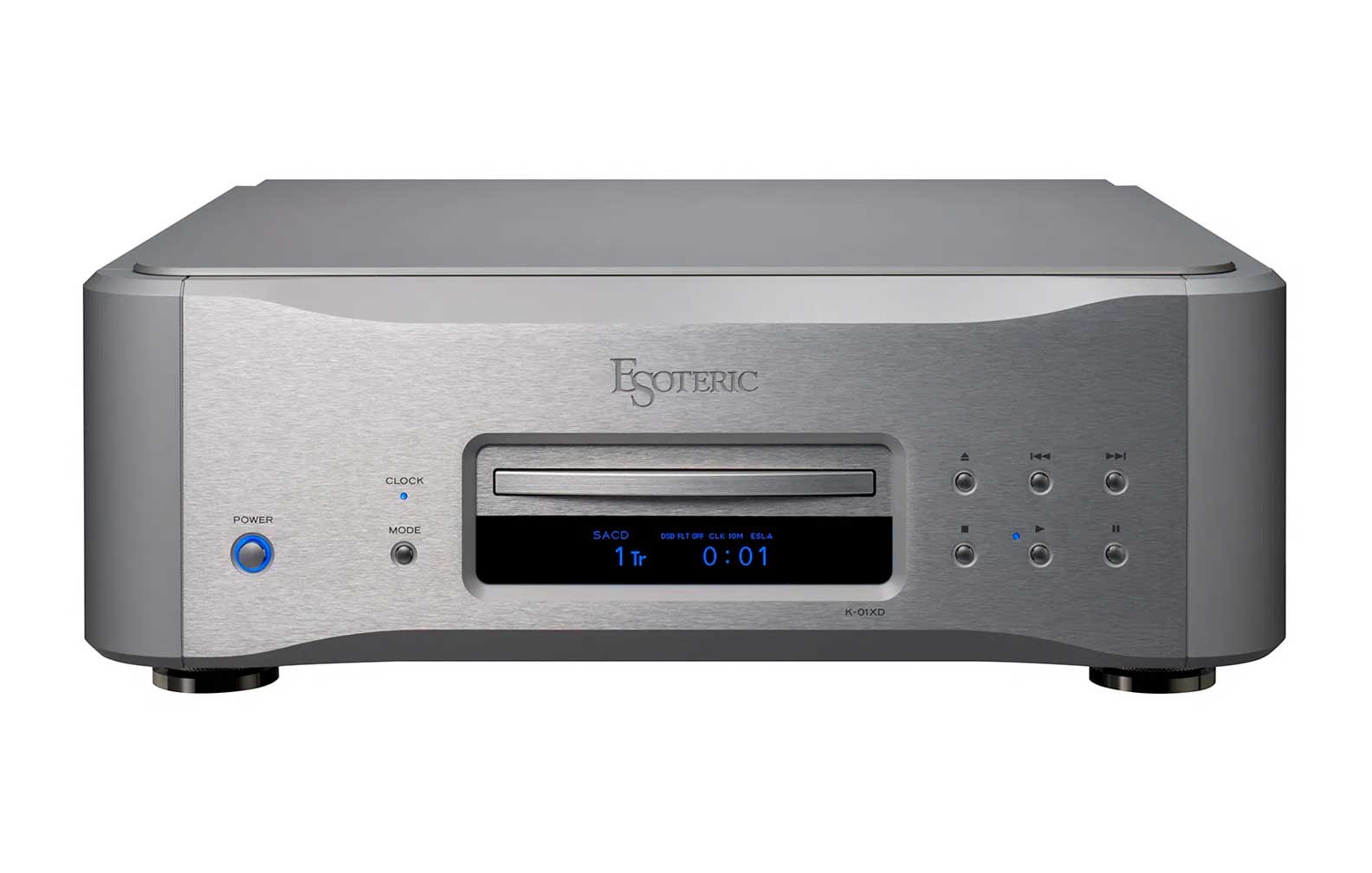

K-01XD
VRDS (Vibration-Free Rigid Disc-Clamping System) is a core technology of ESOTERIC’s CD/Super Audio CD transport mechanisms that has been a key point of focus since the brand’s founding. The system firmly clamps the disc onto a turntable of the same diameter, thus eliminating both the rotational vibration of the disc itself and the effects of any extraneous mechanical vibration. Any latent disc warpage is also corrected by the turntable to significantly improve the relative optical axis accuracy of the optical pickup and the disc pit surface, while also minimizing servo current. This all combines to significantly reduce disc read error and further enable breathtaking sound quality.

K-01xs

The VRDS mechanism has undergone continuous development and improvements for over 30 years. Throughout its long, illustrious history, one prominent highlight has been the debut of the VRDS-ATLAS platform, which offers the pinnacle of perfection and sound quality. The Esoteric K-01XD is equipped with VRDS-ATLAS mechanisms that have been specifically customized for each model in order to carry on the full qualities of the VRDS-ATLAS reference mechanism used in our flagship models, the Grandioso P1X and K1X.

The Esoteric K-01XD’s new ATLAS 01 disk transport features a 20mm-thick SS400 steel bridge that is identical to that used in our high-end Grandioso models. The mechanism boasts ultra-high rigidity and a weighty design to damp out any vibration that could affect sound quality. The transport’s duralumin turntable also has a well-earned reputation for excellent sound quality, and its solid steel bridge is larger than that for the VRDS-NEO, using a one-point spindle bearing design that minimizes friction and rotational noise through its point-contact thrust bearing, which utilizes the same steel ball featured in the high-end models.

As the quietest and most elegant transport in VRDS history, ESOTERIC’s impressive VRDS-ATLAS epitomizes the company’s resolute focus on mechanical grounding technology in order to more effectively reduce vibration.
Adopting a wide, low-profile design for the entire transport mechanism helped achieve a lower center-of-gravity, while the relocation of the turntable motor to below the turntable from its previous position above the bridge dramatically shortened the route for grounding vibration and reducing mechanical noise. Tray hollowing has also been minimized for increased rigidity, and special stoppers made from vibration-absorbing elastomer cancel out resonance when the tray is in its closed position.

The key to the powerful and deeply luxurious sound quality of the K series has always been their high-performance power supplies. This new XD edition features a significantly enhanced power supply design that delivers even richer, more lifelike sound. The K-01XD is equipped with a total of four high-capacity toroidal power transformers that provide more than ample power by dedicating separate transformers to the D/A converter’s Left and Right channels, the transport mechanism, and the digital circuitry.

New Low-Feedback DC Regulator and Super Capacitors

The higher capacity design of the K-01XD power supplies enables remarkable improvements in sound quality with enhanced resolution in the lower ranges. Their low-feedback DC power regulators minimize feedback in a discrete configuration that does away with integrated circuits by utilizing technology originally developed for the Grandioso P1X/D1X, resulting in a powerful, expansive sound. A total of 71 high-capacitance super capacitors are used in the K-01XD (total capacitance: 1,850,000μF).

The Esoteric K-01XD’s VRDS-ATLAS transport mechanism is centrally located within the chassis, where it is fixed to a 5mm-thick steel bottom plate and supported by three proprietary pinpoint feet (patent no. 4075477 and 3778108). This effectively isolates the rotational mechanism from vibration. The internal structure of the chassis features a double deck design, with the audio boards on the upper level and power supply circuits and transformers on the lower level to minimize magnetic flux leakage and vibration, while also shortening the power supply wiring.

The enclosure’s top panel utilizes a screwless semi-floating structure that further contributes to an open and expansive sound.

Our goal was to assemble a carefully chosen selection of rigorously tested discrete components into a complete circuit that could perfectly reproduce all the dynamics and energy of music – something simply unattainable using ordinary integrated chips. Our top engineering teams put their pride on the line to design and produce a quality of sound that can only be found in our Master Sound Discrete DAC discrete D/A converter.

Luxurious Materials for Powerful Electrical Current Output

The Master Sound Discrete DAC was first introduced in the Grandioso D1X as the most innovative DAC in Esoteric history, and its astoundingly realistic sound quality has consistently drawn rave reviews for causing listeners to feel as if they were at an actual live performance. The version featured in the K-01XD uses a simpler circuit configuration that incorporates the very essence of that found in the K1X to carry the 01 series models to new heights. Consisting of 32 elements per channel, each DAC element includes clock drivers, logic circuits, capacitors, resistors, and other component parts, while each group of 32 elements is kept isolated from the main parts. In keeping with D1X design philosophy, these DACs are packed with a luxurious selection of state-of-the-art components to ensure the pure, effortless output of boundless musical energy. Only select, premium-grade high-sound-quality parts are used in the K-01XD, for an uncompromising sound that is one step above.

Advanced Digital Processing

The Esoteric K-01XD’s independently developed Delta-Sigma (Δ∑) modulator supports 64-bit/512Fs and the latest high-end digital formats, including 22.5MHz DSD and 768kHz PCM signals. The FPGA’s dedicated digital processing algorithm was developed exclusively for the Master Sound Discrete DAC, and has been fully optimized for outstanding playback of both DSD and PCM digital audio data.

Advanced Quality Control

With a discrete DAC, where component tolerances are directly linked to arithmetic precision, highly advanced quality control is also required for the manufacture of electronic circuit boards. ESOTERIC’s own in-house factory boasts some of the world’s leading board mounting technologies, such as soldering performed in an oxygen-free furnace, which is located in a clean room featuring the same level of cleanliness found in a hospital operating room. Technologies cultivated in the production of electronic circuit boards for audio, medical, aerospace, and defense industries support the high production quality of the Master Sound Discrete DAC.

Unique ESOTERIC-HCLD Output Buffer Circuit with Enhanced Current Transmission

The ESOTERIC-HCLD* output buffer amplifier boasts an astonishing high-speed slew rate (response speed) of 2,000V/µs. Current transmission and speed – the most important factors in the design of any analog output circuit – have been pushed to the limits to reproduce the reality of music with a dynamic range that is truly breathtaking.
* HCLD: High Current Line Drive

High-Quality ES-LINK Analog Current Transmission

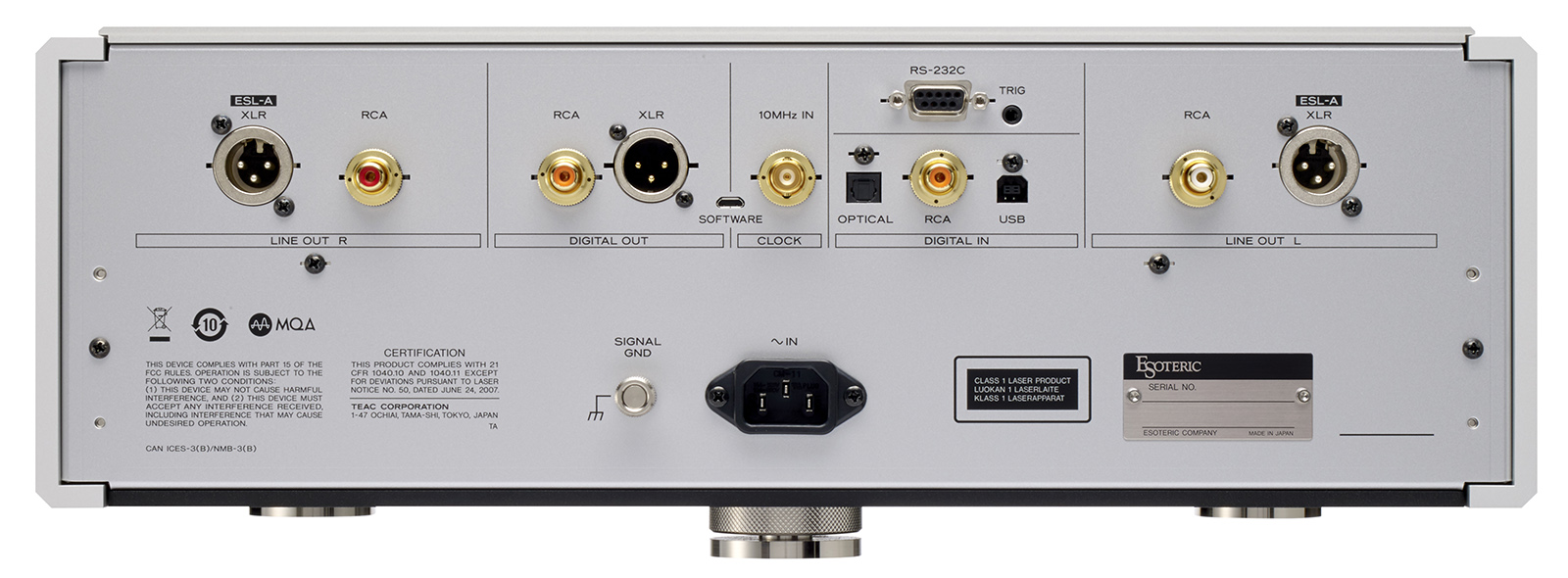

In addition to its XLR and RCA amplifier line connections, the K-01XD features ESOTERIC’s ES-LINK Analog method of current transmission. Taking full advantage of the HCLD buffer circuit’s powerful current supply ensures that the K-01XD is less susceptible to the detrimental effects of impedance on the signal route. It also enables a more powerful signal transmission, fully driving connected compatible devices.

Grandioso Custom VCXO II

A high-accuracy clock circuit is the key to achieving superlative sound quality in digital audio playback, making it truly the heart of any high-end digital player. The K-01XD features the superb Grandioso Custom VCXO II clock originally developed for the Grandioso P1X/D1X. This clock was developed with carefully considered modifications made to the internal circuitry and components of other earlier models to more vividly emphasize each player’s ultimate audio quality while further boasting remarkably low phase noise and excellent center precision (±0.5ppm).
The K-01XD can also be connected to a Master Clock Generator (G-01X or G-02X) for playback, with internal circuits synchronized to a 10MHz clock that features the same high precision as an atomic clock, enabling further pursuit of the highest sound quality.

* VCXO: Voltage Control-type Crystal Oscillator

External Input D/A Conversion, USB Ports, Multiple D/D Conversion Options, MQA Support

The K-01XD offers a wide range of digital inputs, including USB ports that support 22.5MHz DSD and asynchronous transmission, enabling use as a D/A converter. Functions to upconvert a PCM digital signal to 2, 4, 8, and 16 times higher bitrates (Max. 768kHz) and to convert PCM to DSD are also included. The K-01XD is also compatible with MQA-CD decode playback and full MQA decoding for playback of various digital inputs including USB.

Brand

Esoteric

Since 1987, Esoteric has pursued a path dedicated to being a superior high-end audio/video brand focused on introducing components of the best value by merging innovative, proprietary recording and replay technologies. In order to meet the desires of musical and visual connoisseurs who are seeking new levels of excitement, Esoteric’s mission has been to continue to develop and release new products that improve upon the "state of the art" from highly acclaimed SACD players to the finest audio components.

Esoteric applied its no-compromise philosophy with the same intense consideration to its flagship Grandioso series to produce the next dimension of sound and audio immersion. With the Grandioso series, Esoteric sought to eradicate ANY distortions and colorations by taking a fresh look at entrenched norms and design elements, and by scrutinizing every last design detail – no matter how minute. All of the design tweaks, too numerous to elaborate here, yield an exceptional sonic purity that sweeps away distractions and enables listeners to experience an unprecedented level of musical detail and stunning visual presentation.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Esoteric audio components, selling customers the best audio components from Esoteric in Sales Tax Free Delaware. Interested in purchasing a new Esoteric product? You can trade-in any component towards an Esoteric audio component by filling out Overture's Trade-In Form.
