$35,500.00 Each

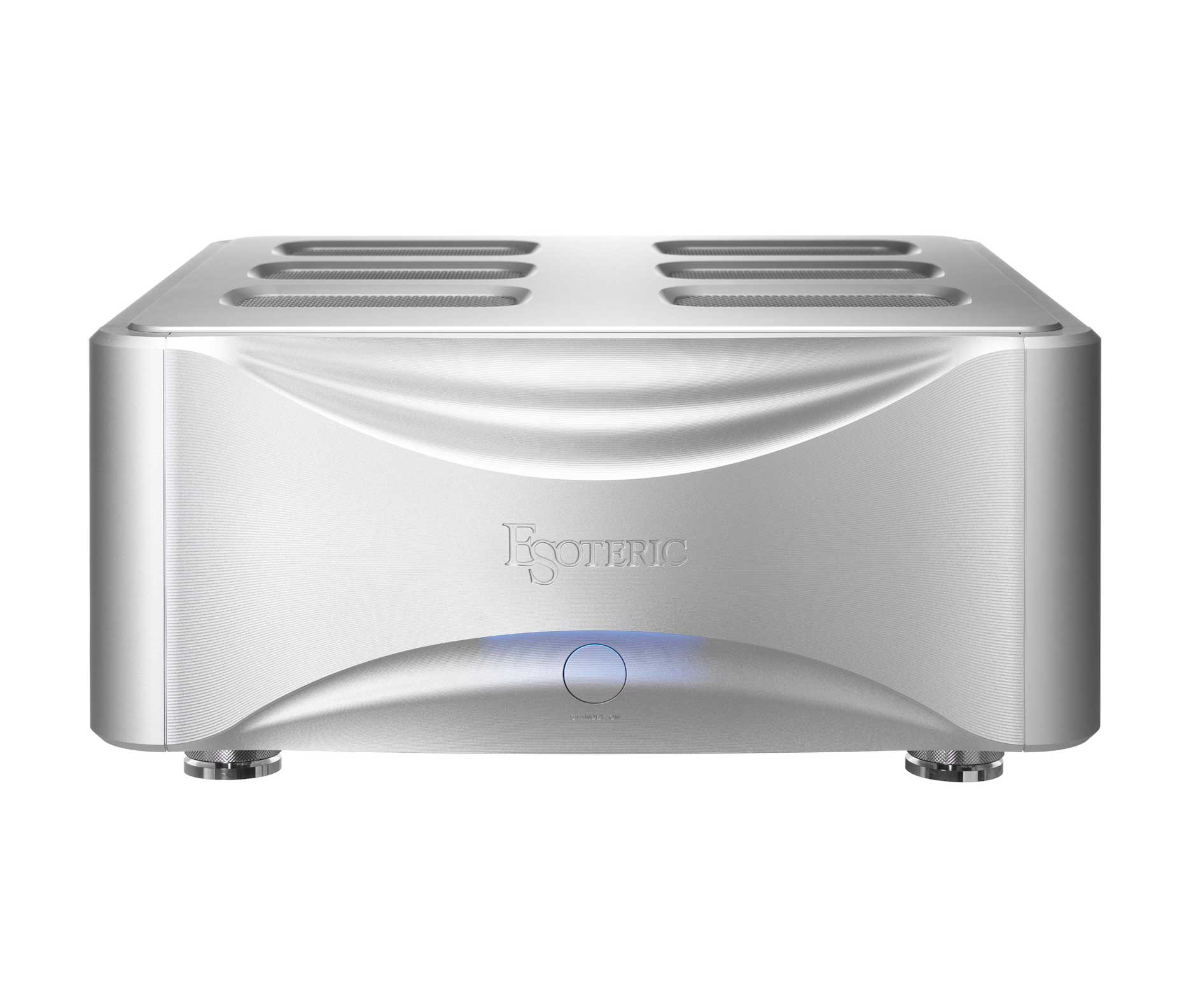

Monoblock Amplifier

If you have a trade-in, request Trade-in Price.

Product Description

Redefinition of a power amplifier with the flagship model



Thoroughly updated, the Esoteric Grandioso M1X contains the latest circuit technologies

  • The world’s first* bipolar transistor with high-current amplification factor and low on-resistance super junction, the ESOTERIC SJ-BJT01 for power amplifier element
  • Toroidal-core transformers exclusive for both voltage amplification and current amplification stages
  • Over-sized ESOTERIC’s custom-designed toroidal-core transformers with over 3,000VA of core-size for the current amplification stage
  • New custom-deisgned capacitor with as high as 60,000uF capacity for the power supply section of the current amplification stage
  • ES-LINK Analog input, a unique current transmission method, in addition to the conventional balanced and unbalanced inputs
  • IDM-01 (Integrated Discrete-Amplifier Module) designed for the Grandioso C1X applied to the ES-LINK Analog circuit
  • Audio signal control with FET elements that are not affected by mechanical contacts
  • Copper foil for conductive patterns on power supply and amplifier printed circuit boards
  • Balanced-design buffer amplifier circuit on input stage

Construction without compromise

  • Hybrid structure with main and bottom chassis with different rigidity
  • Tri power transformer configuration equipped with an R-core exclusive for control system
  • ESOTERIC’s custom-designed un-even length heatsink fins
  • Semi-floating design top panel that maximizes openness of sound
  • ESOTERIC’s patent-registered unique pin-point feet

The completion of the X Edition

  • High quailty analog audio transmission with the Grandioso C1X via ES-LINK Analog
  • Trigger function allows the Grandioso C1X to turn on and off the M1X in sequence

Key Specifications

  • Maximum output: 300 Watt into 8 Ohms / 600 Watt into 4 Ohms / 1,200 Watt into 2 Ohms
  • Inputs: ES-LINK Analog × 1, RCA × 1, XLR × 1
  • Speaker Output: Speaker Terminals × 1ch
  • Trigger: IN × 1, THRU × 1 (Power On/Off controllable from the Gandioso C1X)
  • Overall Dimensions: 491 × 221.5 × 535mm (W×H×D, including protrusion)
  • Weight: 63kg

Brand

Esoteric

Since 1987, Esoteric has pursued a path dedicated to being a superior high-end audio/video brand focused on introducing components of the best value by merging innovative, proprietary recording and replay technologies. In order to meet the desires of musical and visual connoisseurs who are seeking new levels of excitement, Esoteric’s mission has been to continue to develop and release new products that improve upon the "state of the art" from highly acclaimed SACD players to the finest audio components.

Esoteric applied its no-compromise philosophy with the same intense consideration to its flagship Grandioso series to produce the next dimension of sound and audio immersion. With the Grandioso series, Esoteric sought to eradicate ANY distortions and colorations by taking a fresh look at entrenched norms and design elements, and by scrutinizing every last design detail – no matter how minute. All of the design tweaks, too numerous to elaborate here, yield an exceptional sonic purity that sweeps away distractions and enables listeners to experience an unprecedented level of musical detail and stunning visual presentation.

As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Esoteric audio components, selling customers the best audio components from Esoteric in Sales Tax Free Delaware. Interested in purchasing a new Esoteric product? You can trade-in any component towards an Esoteric audio component by filling out Overture's Trade-In Form.

Esoteric Grandioso

Since 1987, Esoteric has pursued a path dedicated to being a superior high-end audio/video brand focused on introducing components of the best value by merging innovative, proprietary recording and replay technologies. In order to meet the desires of musical and visual connoisseurs who are seeking new levels of excitement, Esoteric’s mission has been to continue to develop and release new products that improve upon the "state of the art", from highly acclaimed pure audio/video source devices to Super Audio CD and DVD components. Esoteric applied its no-compromise philosophy with the same intense consideration to its flagship Grandioso series to produce the next dimension of sound and audio immersion. With the Grandioso series, Esoteric sought to eradicate ANY distortions and colorations by taking a fresh look at entrenched norms and design elements, and by scrutinizing every last design detail – no matter how minute. All of the design tweaks, too numerous to elaborate here, yield an exceptional sonic purity that sweeps away distractions and enables listeners to experience an unprecedented level of musical detail and stunning visual presentation. As a nationally recognized leader in the field of high-end audio and home theater, Overture is a proud dealer of Esoteric audio components, selling customers the best audio components from Esoteric in Sales Tax Free Delaware. Interested in purchasing a new Esoteric product? You can trade-in any component towards an Esoteric audio component by filling out Overture's Trade-In Form.
