Product Description

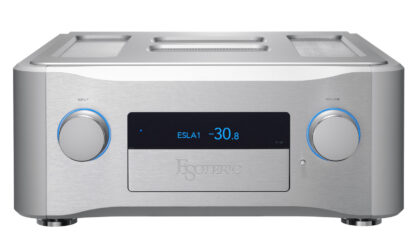

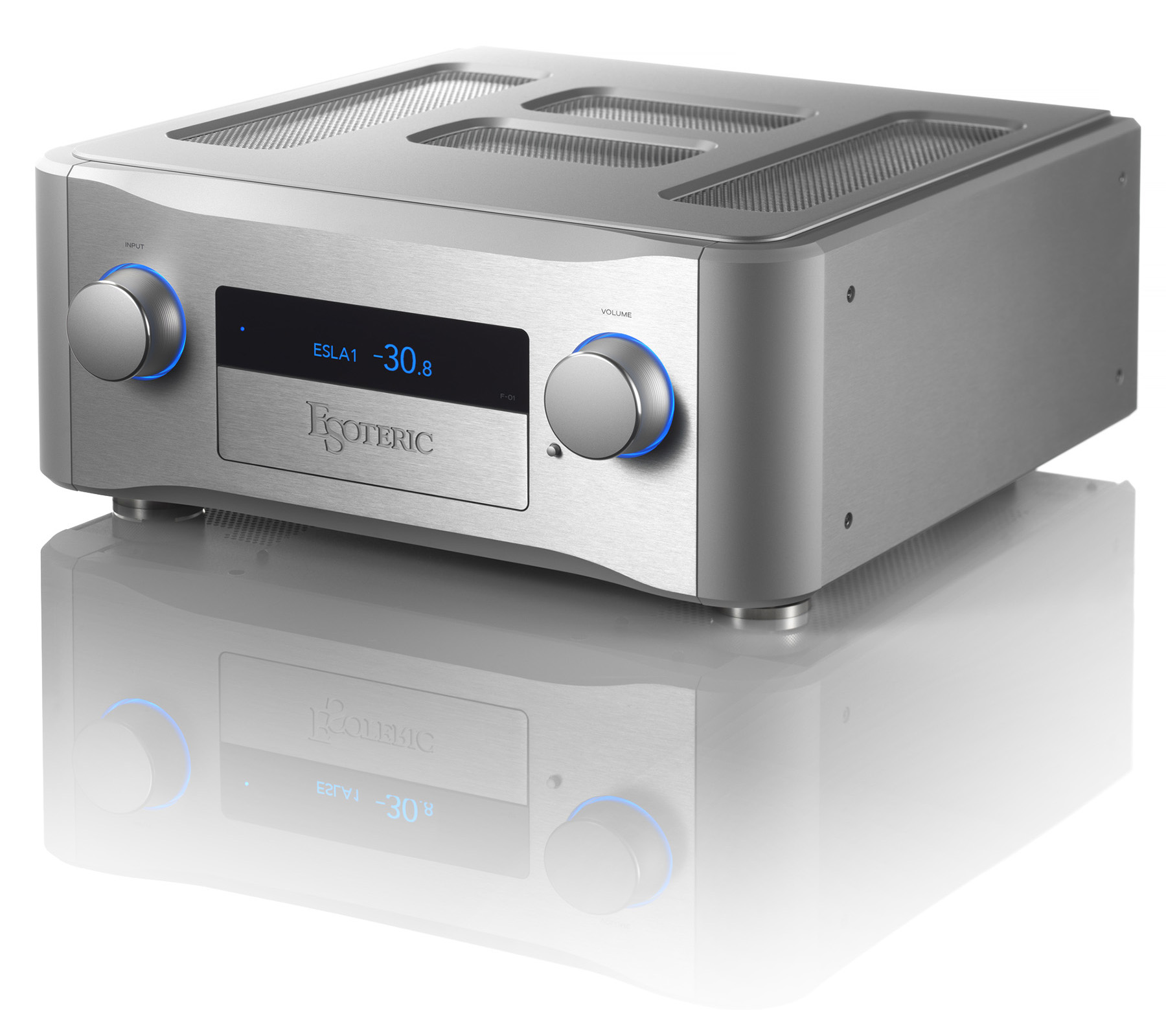

The Esoteric F-01 Integrated Amplifier is the “Finest” Integrated Amplifier You Could Ever Want – The new F Series integrated amplifiers are the culmination of a range of technologies designed to fulfill your ideals.
Incorporating all of the preamp and power amp developments from the flagship Grandioso “X” Edition, the new F Series integrated amplifiers deliver outstanding musicality that captures the rich textures of music in a single integrated amplifier. Despite the fact that the F Series is an integrated amplifier, it delivers a thorough quality and performance that will be the envy of all separate amp users. The F Series is the integrated amplifier that owners of Esoteric’s K and N Series digital players have been waiting for, and it pushes the boundaries of integrated amplifier technology.
[Preamplifier Section]
- A fully balanced dual mono preamp in the direct line of the Grandioso C1X
- “Ultra Fidelity Attenuator System”, a stepped attenuator circuit developed by Esoteric
- Volume can be adjusted in 0.1dB/1,120* steps with our proprietary attenuator module “UFA-1792” *Preamp gain setting: at +12dB
- 3 inputs of “ES-Link Analog”, a unique and proprietary current transmission system
- Two headphone outputs (balanced 4-pin XLR / unbalanced 6.3mm) with built-in fully balanced dual mono headphone amplifier
- Dual mono phonostage preamp (RCA x 1, MM/MC)
- 3-band balanced tone control, independently adjustable for each input source
- ES-Link Analog(x1) /XLR (x1) pre-out for connecting the S-05 as an external power amplifier
- Dedicated DC power connector for connecting the PS-01F external power supply dedicated to the built-in preamp (to be released later)
- Preamp gain can be adjusted in 4 steps (0/+6/+12/+18dB) to match the connected power amplifier
[Amplifier Section]
- Simple and straightforward circuit design concept based on Grandioso S1X
- Class A 30 WPC/8Ω
- Excellent power linearity and driving power (60 WPC/4Ω)
- All stages of the power rectification and smoothing circuit are configured with dual monaural design
- Powerful bipolar transistor 3-parallel push-pull configuration
- Huge 940VA EI core power transformer
- Channel-independent Grandioso grade custom block capacitors (10,000μF x 4/ch)
- Custom wave-shaped heat sinks to reduce peak resonance
[Other Features of the Esoteric F-01]
- Independently adjustable input gains (±18dB; 0.1dB steps)
- L/R channel balance (0.1dB steps)
- AV through output (volume bypass) ensures seamless coexistence with AV systems
- Aluminum body remote controller (RC-1339) can also be used to operate Esoteric’s SACD players and network players
- Displayed source device names can be programed
- Mute, dimmer and automatic display-off functions
- Control functions (RS-232C, trigger input / output)
