Product Description

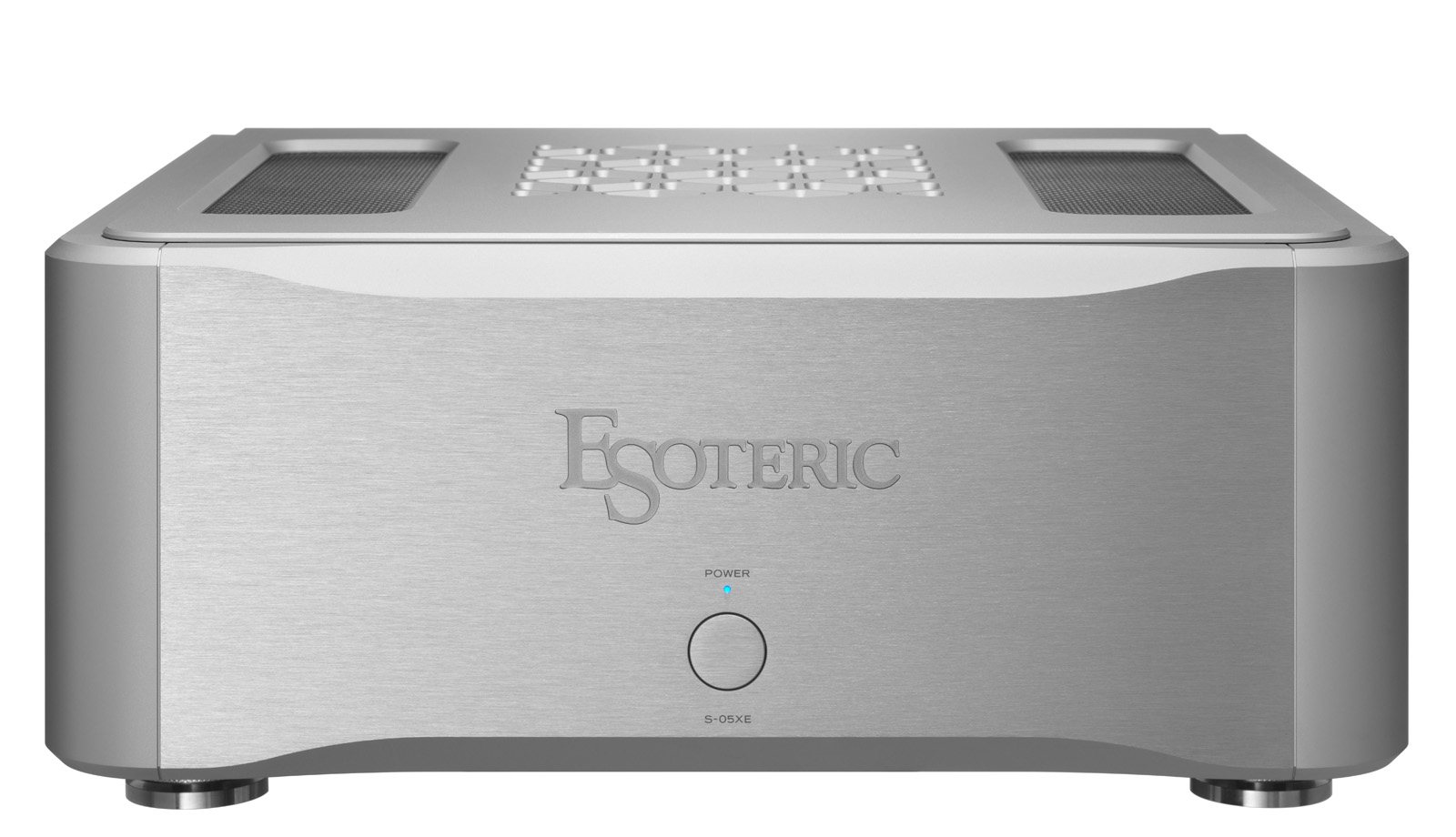

The Esoteric S-05 XE Is A New Benchmark of Class A Amplifiers
Inheriting the design philosophy of the Grandioso S1X, this 30 W per channel Class A amplifier embodies the “aesthetics of subtraction” through advanced engineering down to the finest detail. A simple, straightforward circuit design enables rich harmonic reproduction while reducing internal impedance for effortless speaker control. The newly designed “Fully Symmetrical Balanced Input Buffer Amplifier” further enhances signal purity.
The soundstage expands seemingly without limit and the key lies in its powerful power supply architecture.
The S-05XE maintains its large-scale, dual-mono configuration across all stages, including the power supply smoothing circuit. It now incorporates a large toroidal core power transformer with a 1,000 VA power supply capacity. The power supply smoothing circuit has been updated with numerous unique technologies, producing a thrilling, scaled-up sound.
A Sense of Scale That Far Exceeds the Numbers
The S-05XE’s exceptional sound quality vividly differentiates the timbre of each instrument, bringing music to life with dynamic energy and realism. This is achieved through the philosophy known as the “aesthetics of subtraction,” realized through advanced engineering techniques. With its pure single-ended design, signals take the shortest path. This minimalist design philosophy preserves the most vital harmonics in music, allowing it to be rendered with rich expression. The phase compensation circuit uses a simple, single-pole configuration, and the final stage is coil-less. Negative feedback (NFB) is minimized to prevent loss of dynamic energy.
Class A amplifiers inherently generate significant heat, stabilizing the temperature of the amplifier block is essential to achieving consistently high sound quality.
In a unique layout, all transistor elements are arranged in a single row at the lowest point of the amplifier block, where temperature variation is minimized. This ensures that all devices operate under identical thermal conditions. Comprehensive temperature management across the entire circuit enables optimal performance, with idle current stabilizing rapidly after power-up, allowing the S-05XE to deliver peak performance almost immediately.
The S-05XE employs high-fidelity components and minimizes internal impedance to deliver exceptional driving capability. This allows it to exert firm control over large-diameter speaker woofers and drive them effortlessly to their low-frequency limits. The PCB pattern utilizes 105 μm-thick copper conductors, while extra-thick gauge cables are securely fastened using bolt-mounted terminals rather than conventional clip-on connectors, significantly reducing contact resistance. In the drive stage, eight bus bars made from 1.0 mm-thick, high-purity OFC are employed. The speaker output section further adopts MOSFET switches to eliminate mechanical contacts and maintain signal integrity.
The S-05XE delicately renders the subtle gradation between silence and musical climaxes. A key contributor to its expressive low-level resolution is the newly designed, fully symmetrical balanced input buffer amplifier. This circuit converts all incoming music signals from upstream components into balanced signals before they reach the amplification stage, effectively eliminating common-mode noise.
In the XE model, the positive/negative and left/right balanced circuits are laid out in perfect symmetry to enhance operational accuracy. In addition, the power-supply smoothing circuits are independently designed for each channel, further refining overall sound quality. MOSFET switches, known for their minimal tonal coloration are used at all switching points within the audio signal path.
