$1,999.95

SKU: aad-soundsmith-Norma Category: Tags: ,
Description

Description

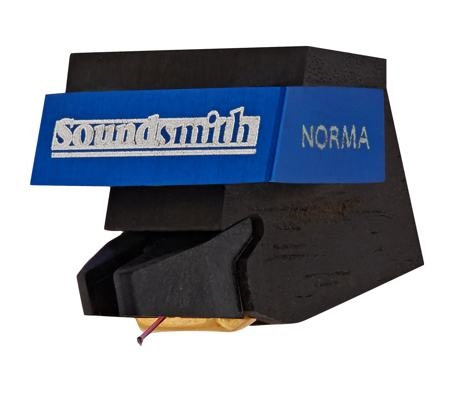

Medium output, otherwise identical to Aida; itself a triumph of Soundsmith Engineering, Stereophile Class “A” rated, a rarity at its price point – and for good reasons. The Aida employs a single crystal Ruby Cantilever and our Optimized Contour Line Contact Stylus; we did this to resolve the challenges of playing the inner grooves with the same level of confidence as the outer.


Cartridge Type: Fixed Coil

Stylus Type: Contact Line

Output: Medium

Output Voltage: 1.1 mV

Available As Dual Coil Mono: Yes

Additional Specifications

Stylus: Contact Line Nude, 0.100mm SQ
Radius of curvature: OCL (Optimized Contour Contact Line)
Cantilever: Ruby
Recommended tracking force: 10mN / 1.0 gm (high), 13mN / 1.3 gm (medium)
Effective tip mass: 0.30 mg
Compliance: 28 μm/mN (high), 22 μm/mN (medium)
Frequency response: 20-20,000 Hz ±2.5 dB
Channel separation (stereo only): 1000 Hz >30 dB, 50-15,000 >20 dB
Channel difference: <1.0 dB (Stereo) <1.0 dB (Mono)
Output voltage (Norma): 1.1 mV
Cartridge weight: 6.8 grams
Stylus to Mounting Hole Offset: ≈ 10mm (0.4″)
Loading (Norma): ≥ 1.5 kΩ

Brand

Brand

Soundsmith

Soundsmith has designed and manufactured – and repaired – varied types of audio equipment for over 35 years. Dedicated to producing the world’s most accurate vinyl sound reproduction, Soundsmith recently introduced its new top-of-the line moving Iron cartridge, the VOICE, which is touted as Soundsmith’s best sounding MM-preamp cartridge yet. As the nationally recognized leader in the field of high-end audio, home theater and home electronics, Overture is proud to include Soundsmith in our presentation of high-performance components. If you are interested in purchasing a Soundsmith product, you can trade-in any other brand electronic component or speaker on it by filling out Overture’s Trade-In Form.

Additional information

Additional information

Weight 1 lbs
