$2,295.00

If you have a trade-in, request Trade-in Price.
SKU: aaa-Bryston BHA-1 Balanced Headphone Amplifier Category: Tags: ,
Description

Description

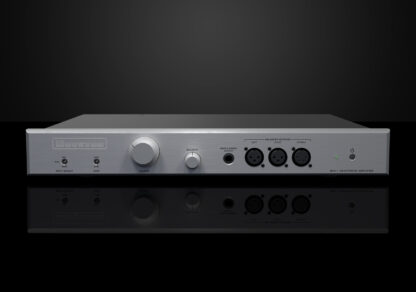

Advancing our tradition of unmatched audio performance and functionality, the BHA-1 Balanced Headphone Amplifier is Bryston’s reference amplifier solution for the finest listening experience from your headphones. The BHA-1 is compatible with both traditional (single-ended) and balanced headphones.

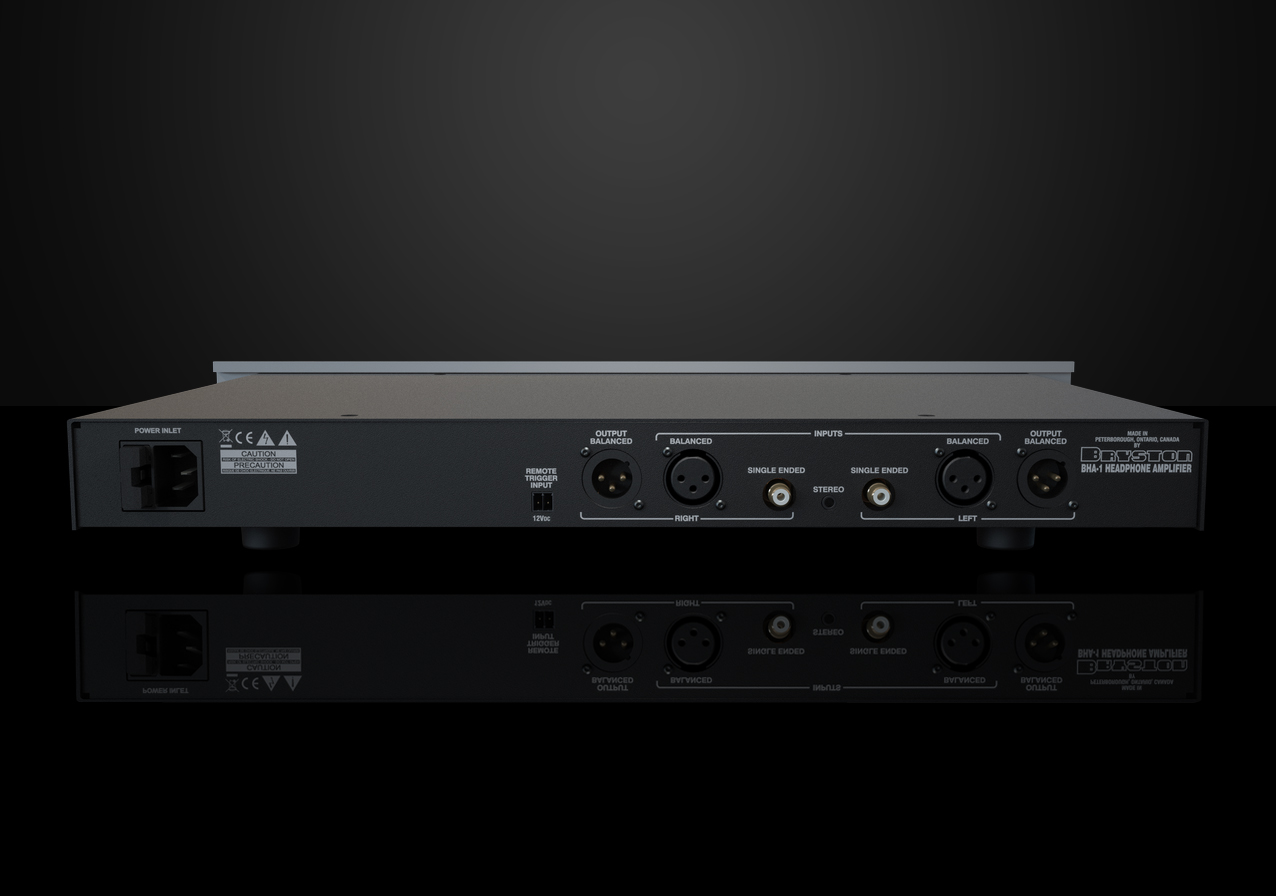

Inputs: Balanced XLR Pair, Single Ended Pair (RCA), 3.5mm Stereo Mini Jack (MP3 Player Source, etc.)
Outputs: Balanced XLR (4 Pin Stereo), Balanced XLR Pair (3 Pin Left/Right), ¼” Headphone Jack
Control: Remote Trigger Input ( 5 – 12V AC/DC @10mA)

Specifications:

  • 2 Ohms output impedance for each op-amp driver.

Load @ 600 Ohms

  • Hi – 10.9V Out @ 001% Power 200 mW
  • Lo – 5.45 V Out @ 001% Power 50 mW
  • Lo – 2.50 V Out @ 001% Power 10 mW
  • Lo – 788 mV Out @ 001%¹ Power 1 mW

Load @ 300 Ohms

  • Hi – 10.8 V Out @ 001% Power 390 mW
  • Lo – 5.40 V Out @ 001% Power 50 mW
  • Lo – 1.79 V Out @ 001% Power 10 mW
  • Lo – 583 mV Out @ 001%¹ Power 1 mW

Load @ 80 Ohms

  • Hi – 10.4 V Out @ 002% Power 1.35 W
  • Lo – 5.20 V Out @ 001% Power 383 mW
  • Lo – 887 mV Out @ 001% Power 10 mW
  • Lo – 345 mV Out @ 003% Power 1 mW

Load @ 32 Ohms

  • Hi – 9.65 V Out @ 0.150% Power 2.9 W²
  • Lo – 4.84 V Out @ 002% Power 732 mW
  • Lo – 578 mV Out @ 001%¹ Power 10 mW
  • Lo – 185 m V Out @ 005%¹ Power 1 mW
  • Lo – 4.00 V Out @ 001% Power 500 mW³

Options:

  • Available with Silver or Black Faceplate (2U)
  • 17” or 19” Faceplate available
  • Rack Mountable Ears available
  • Locking mechanisms on Balanced XLR connectors

Features:

  • Balanced outputs
  • Balanced dual mono circuitry
  • Left/Right balance control
  • Six fully discrete Class A Bryston operational amplifiers
  • 14dB or 20dB gain
  • 10k input impedance
  • High quality noble stereo volume control (laser trimmed)
  • Gold plated input and output connectors
  • Multiple headphone drive capability

Physical:

  • 2.75” (2″ W/O feet) H x 17” W x 12.25” D (17″ faceplate)
  • 69.85mm (50.8mm W/O feet) H x 431.8mm W x 311.15mm D (431.8mm faceplate)
  • 2.75” (2″ W/O feet) H x 19” W x 12.25” D (19″ faceplate)
  • 69.85mm (50.8mm W/O feet) H x 482.6mm W x 311.15mm D (482.6mm faceplate
  • 13.25 Ibs

² Onset of clipping
³ Rated output

Brand

Brand

Bryston

Bryston Ltd. has been designing and manufacturing state-of-the-art specialty electronics for both the consumer and professional audio marketplaces for over 35 years. Bryston is prominent in the professional market providing amplifiers for recording studios, and radio and television broadcast facilities. With a tradition of artisan craftsmanship, Bryston challenges their engineers to create the finest products possible to provide the owner with the most musically accurate and reliable performance possible. With an extensive research and development division, no expense is spared in designing, hand-crafting, assembling and testing every component to ensure the delivery of maximum performance and reliability of each Bryston product. As America’s Premier High End Audio Dealer, Overture is proud to offer Bryston electronics. If you are interested in purchasing a Bryston component, and have another component you would like to trade-in on it, please Request a Trade-in Price.
Additional information

Additional information

Weight 10 lbs
Dimensions 10 × 10 × 2 in
