Reference Vacuum Tube, Line-Stage Preamplifier

If you have a trade-in, request Trade-in Price.



Product Description

In 2010 we announced the Reference Anniversary preamplifier, a special limited edition product commemorating our 40th anniversary. It was acclaimed by many as the finest preamplifier available and a fitting tribute to all of the classic Audio Research products that were introduced during the forty years that preceded it. That we would only accept new orders for this special product during the anniversary year surprised almost everyone, but we considered the limited time frame appropriate. Since that time, we have learned a few things, and the result of that knowledge led to the development of the Audio Research Reference 10 Linestage. Included are critically chosen new components, proprietary custom-made capacitors, wiring, and new connectors that cumulatively provide a level of performance never before achieved. Key Audio Research design traits remain: The signal path is fully discrete, all-tube, pure Class-A, with zero feedback. Other attributes and choices remain, too: Each unit is completely hand-soldered and hand-constructed in our Minnesota facility using the finest materials, with major components such as custom transformers, plated-through circuit boards, and casework sourced locally. All engineering is performed in-house.

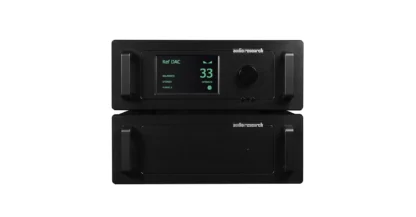

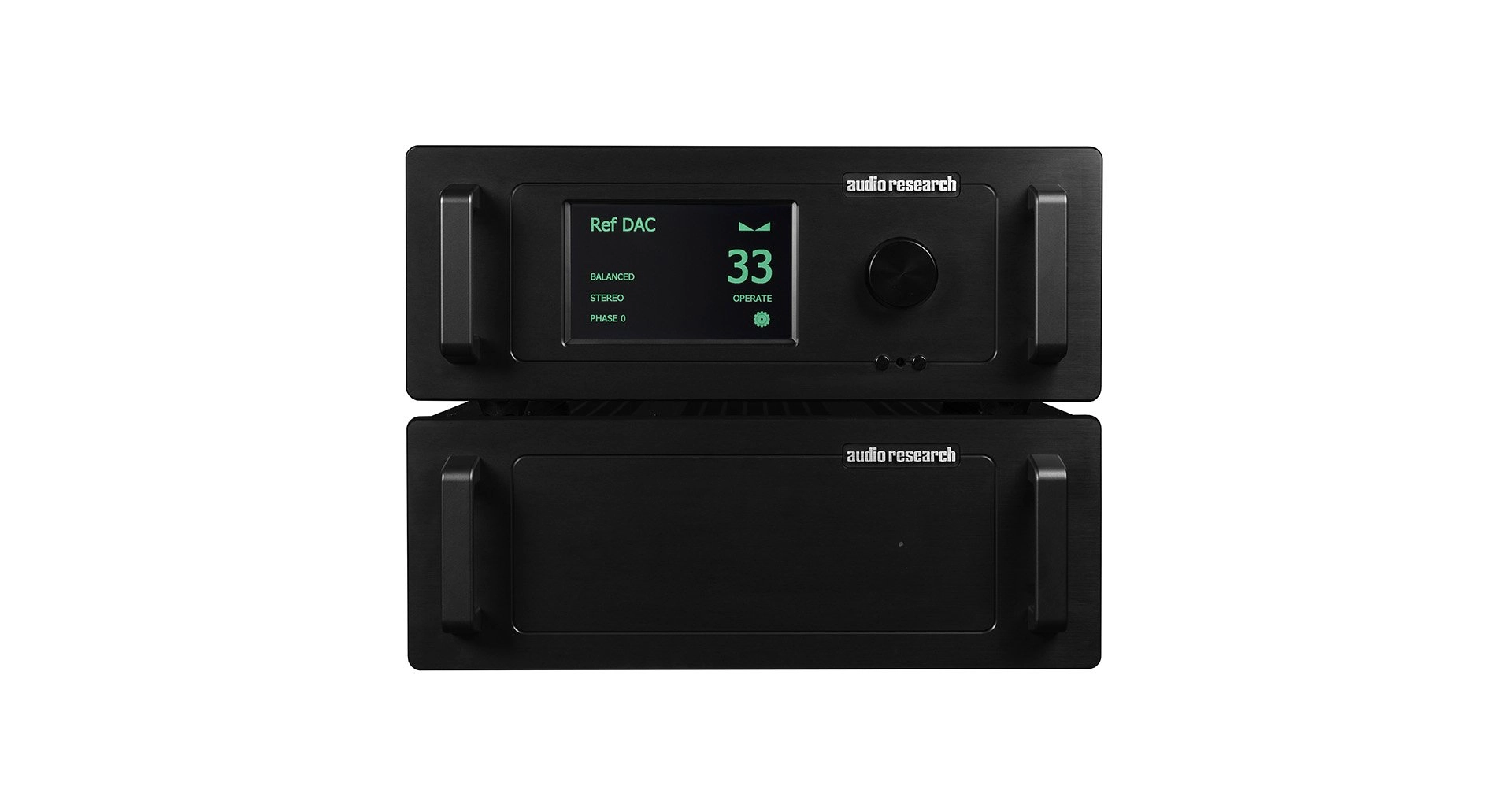

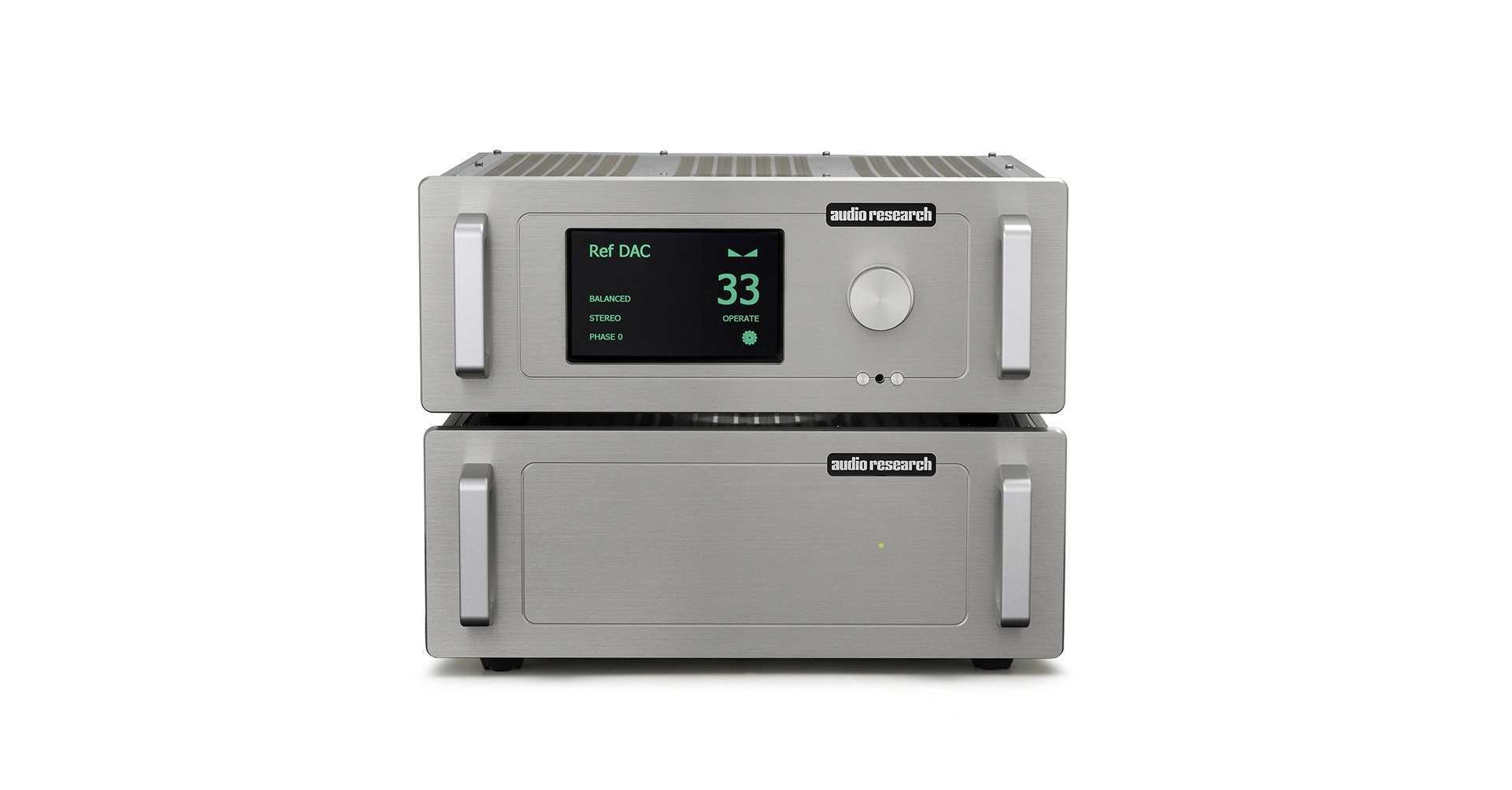

The Audio Research Reference 10 follows a new aesthetic path as well. It has a very modern and elegant finish that will attract new admirers without alienating fans of our older products. The front panel of the main control unit has a new, large round volume knob on the right side, with two buttons under it for Power and Mute—the only two buttons on the unit—and a large display on the left. Our logo is above the knob on the right, making this the first asymmetrical Audio Research preamplifier ever. The left side of the front panel contains an interactive touch-screen display that allows the user to intuitively control almost all functions.

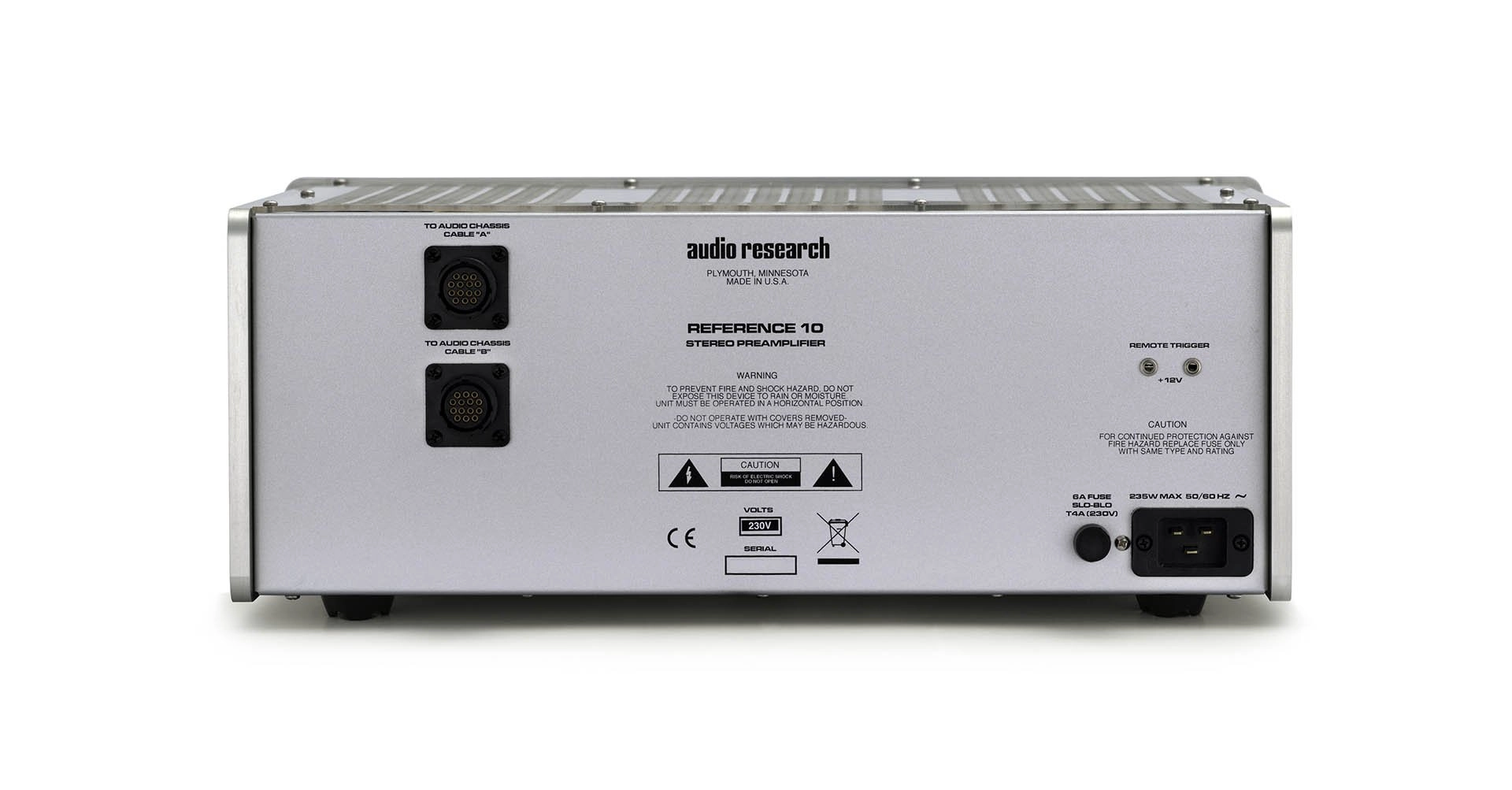

The power supply chassis, connected to the main unit via two umbilical cords, simply has one green LED under its offset Audio Research logo. All of the side panels are finished identically to the front panels: Natural anodized, one quarter-inch thick, with no screws visible. The entire chassis (including rear panel) is painted silver to complete the look. There are beautiful new, clear acrylic covers with a revised perforation pattern. And, there is no printing on the front panel of either chassis.

After the single 20A power cord, the Reference 10 is completely dual-mono from the power supply through the audio circuit. There are dual, separate low- and high-voltage transformers for each channel; there is dual-mono vacuum-tube regulation (one 6H30 and one 6550WE per channel), dual-mono audio circuits (four 6H30 per channel), and enough energy storage for a serious power amplifier.

Just as the Reference Anniversary was shockingly better than its predecessors, the Reference 10 offers a further level of resolution, refinement and dynamism that vividly improve the musical experience in every way. As we have said before, words can only fall short of your own experience; to understand how much more profound listening to your favorite recordings can be, you must hear the Reference 10. It is stunning.


FREQUENCY RESPONSE

+0 -3dB 0.1Hz to 200kHz at rated output. (BALANCED, 200k ohms load.)

DISTORTION

Less than .006% at 2V RMS Balanced output.

GAIN

Main output (SE or BAL input)12dB Balanced output, 6dB Single Ended output. Tape output: 0dB. (Processor input: 0dB Balanced)

INPUT IMPEDANCE

120K ohms Balanced, 60K ohms SE, Inputs (7): 1, 2, 3, 4, 5, 6, PROCESSOR. (XLR and RCA connectors).

OUTPUT IMPEDANCE

600 ohms Balanced, 300 ohms SE main (2), 20K ohms minimum load and 2000pF maximum capacitance. Outputs (3): 2 main, 1 tape (XLR and RCA connectors).

OUTPUT POLARITY

Non inverting.

MAXIMUM INPUT

20V RMS maximum Balanced, (10V RMS SE).

RATED OUTPUTS

2V RMS (1V RMS SE) into 200K ohm balanced load (maximum balanced output capability is 30V RMS at less than 0.5% THD at 1kHz).

CROSSTALK

-80dB or better at 1kHz.

CONTROLS

Volume (104 steps). Push Buttons: Power, Mute, Interactive Touch Panel. Rear RS-232 control and IR input.

POWER SUPPLIES

Electronically regulated low and high voltage supplies. Automatic 40 sec. warm-up/brown-out mute. Line regulation better than .01%.

NOISE

1.7uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (109dB below 2V RMS output.)

TUBE COMPLEMENT

(8)-6H30P dual triodes, plus (2 each) 6550C and 6H30P in power supply.
