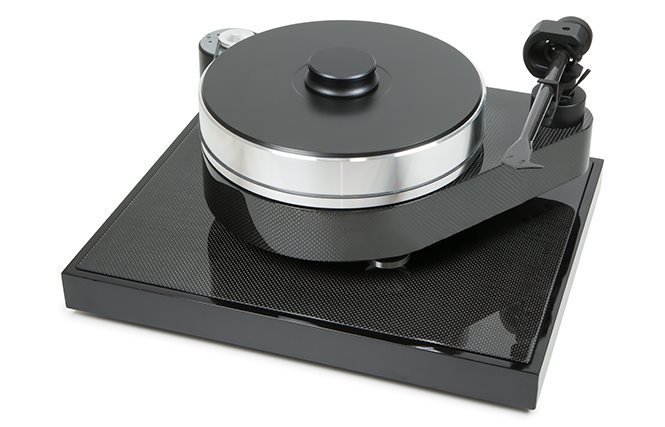

Pro-ject RPM10 Carbon

Description

Beautiful, clever design with ultimate high-end sound quality

Thanks to extensive research and development, we have now elevated our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra-heavy chassis which features a special CNC-machined MDF base with resin-coated steel pellets to form an extra-heavy and precise sandwich construction. A special, complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble due to the magnetic suspension of the platter. The heavy outboard motor unit is equipped with precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least, the no-compromise 10″ EVO tonearm with conical carbon-fiber arm tube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible, top-grade copper internal wiring is used. The RPM 10 Carbon is delivered with Ground it Carbon equipment base and top-grade 5P phono cable “Connect It CC” with RCA plugs (XLR as an option). An acrylic dust cover, “Cover it 1”, is also available.

*Not compatible with Speed Box S or Speed Box DS.

DOWNLOAD USER MANUAL

TECHNICAL SPECIFICATIONS

Speed
33, 45 rpm (electronic speed change)

Drivebelt drive

Platter
10.4 kg aluminum (300mm diameter)

Main Bearing
inverted stainless steel with ceramic ball/plate

Wow & Flutter
33: +/- 0.11%
45: +/- 0.10%

Speed Drift
33: +/- 0.01%
45: +/- 0.01%

Signal to Noise
-75dB

Tonearm
10″ Carbon EVO

Effective Arm Length
254 mm

Effective Arm Mass
8,5 g

Overhang
16mm

Tracking Force
10 – 35mN

Supplied Counterweights
5 – 7.5g / 7 – 10g / 9 – 11g / 10 – 14g

External Power Supply
15 volts DC / 1.6A

Power Connection
110/120 or 230/240 Volt – 50 or 60 Hz

Power Consumption
15 watts max / < 0,3 watts standby

Dimensions
480 x 210 x 330mm (WxHxD)

Weight (RPM 10 Carbon)
22.0 kg net

Weight (Ground It Carbon)
14.5 kg (net)
