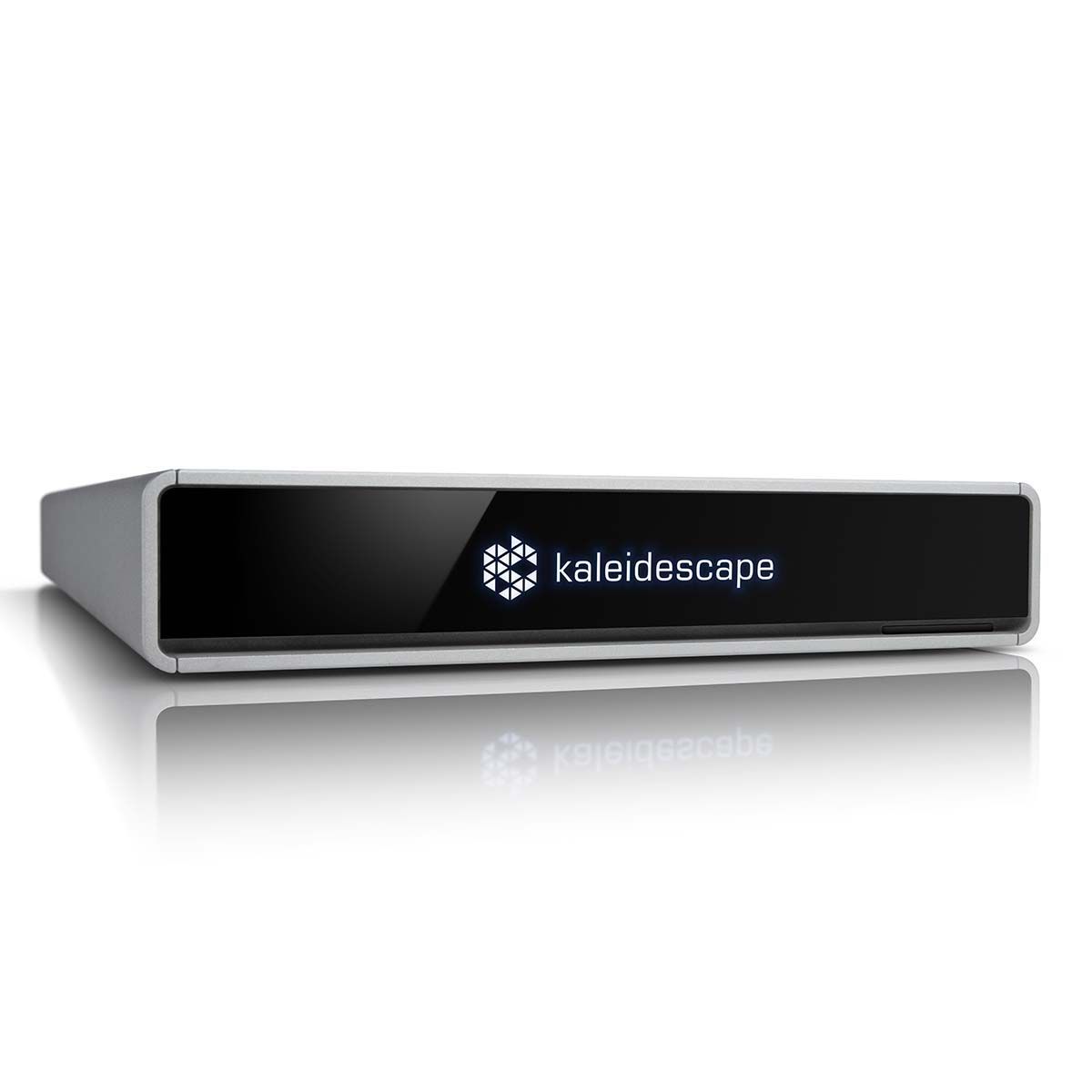

Kaleidescape Mini Terra Prime 8TB SSD

Product Description

Terra Prime movie servers feature an all-new board design, faster processing power, and a faster network.

Next-generation movie server with high capacity
2.5 Gigabit Ethernet
Enterprise-class hard disk drives
Storage options for approximately 1,600 (96TB), 1,200 (72TB), 800 (48TB), 400 (24TB), or 130 (8TB) 4K movies
Downloads a Kaleidescape high-bitrate 4K movie in as little as eight minutes
Distributes up to five simultaneous playback streams (compact)
Distributes up to 10 simultaneous playback streams (full-size)
Movies can be downloaded on up to five systems; perfect for multiple residences
Custom rack mounts sold separately

Terra Prime stores movies, TV series, and concerts on an array of enterprise-class hard drives. Content stored on the movie server are played back on Strato players.

Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance.

Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

Terra Prime movie servers can download a Kaleidescape high-bitrate 4K movie in as little as eight minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP.

SHARED SPECIFICATIONS	FULL SIZE: 96, 72 & 48 TB	COMPACT: 24 & 8 TB
MOVIE SERVER Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies NETWORK 2.5 Gigabit Ethernet (recommended) 1 Gigabit Ethernet (minimum) OTHER CONNECTION USB 3.0 (reserved) ENVIRONMENT Operating: 41 to 95°F (5 to 35°C) Storage: -4 to 140°F (-20 to 60°C) Relative humidity: 20 to 80% (operation) 5 to 90% (storage) Maximum operating altitude: 10,000ft (3,048m) VENTILATION Airflow: Full Size – 10 CFM (17 m3/hr) max Compact – 5 CFM (8.4 m3/hr) max Minimum 1in (2.5cm) space at the front Minimum 2in (5cm) space at the rear CERTIFICATIONS CSA 62368-1 IEC 62368-1 FCC CLASS B CE RoHS Compliant	DIMENSIONS 17.0×3.5×10.0in (W×H×D) (43.2×8.9×25.4cm) WEIGHT 15.4lb (7.0kg) with no drives installed 21.6lbs (9.8kg) with four hard drives FAN AND DRIVE NOISE Typical: 29 dB(A) POWER Max consumption: 48W Typical: 43W External power adapter: 2.6×1.4×6.5in (6.6×3.5×16.5cm) 150W with detachable line cord 100-240V, 50-60Hz universal input 12VDC @ 12.5A STORAGE Four removable 24TB, 18TB, or 12TB hard drives (96TB, 72TB, or 48TB total) 96TB configuration: Stores ~1,600 Kaleidescape high-bitrate 4K movies, ~2,600 HD movies, or ~14,400 SD movies 72TB configuration: Stores ~1,200 Kaleidescape high-bitrate 4K movies, ~1,950 HD movies, ~10,800 SD movies 48TB configuration: Stores ~800 Kaleidescape high-bitrate 4K movies, ~1,300 HD movies, ~7,200 SD movies RACK MOUNT (sold separately) Rack shelf available for mounting one unit in a 19in rack, 2RU space	DIMENSIONS 7.87×1.52×14.33in (W×H×D)(20.0×3.9×36.4cm) WEIGHT 7.2lbs (3.3kg) FAN AND DRIVE NOISE Typical: 25 dB(A) POWER Max consumption: 29W Typical: 24W External power adapter: 2.6×1.4×6.5in (6.6×3.5×16.5cm) 150W with detachable line cord 100-240V, 50-60Hz universal input 12VDC @ 12.5A STORAGE One integrated 24TB or 8TB hard drive 24TB configuration: Stores ~350 Kaleidescape high-bitrate 4K movies, ~600 HD movies, or ~3,300 SD movies 8TB configuration: Stores ~130 Kaleidescape high-bitrate 4K movies, ~220 HD movies, or ~1,200 SD movies RACK MOUNT (sold separately) Rack shelf available for mounting one or two units in a 19in rack, 1RU space

SHARED SPECIFICATIONS

FULL SIZE: 96, 72 & 48 TB

COMPACT: 24 & 8 TB

MOVIE SERVER

Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies
Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies

NETWORK

2.5 Gigabit Ethernet (recommended)
1 Gigabit Ethernet (minimum)

OTHER CONNECTION

USB 3.0 (reserved)

ENVIRONMENT

Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity:
- 20 to 80% (operation)
- 5 to 90% (storage)
Maximum operating altitude: 10,000ft (3,048m)

VENTILATION

Airflow:
- Full Size – 10 CFM (17 m3/hr) max
- Compact – 5 CFM (8.4 m3/hr) max
Minimum 1in (2.5cm) space at the front
Minimum 2in (5cm) space at the rear

CERTIFICATIONS

CSA 62368-1
IEC 62368-1
FCC CLASS B
CE
RoHS Compliant

DIMENSIONS

17.0×3.5×10.0in (W×H×D)
(43.2×8.9×25.4cm)

WEIGHT

15.4lb (7.0kg) with no drives installed
21.6lbs (9.8kg) with four hard drives

FAN AND DRIVE NOISE

Typical: 29 dB(A)

POWER

Max consumption: 48W
Typical: 43W
External power adapter:
- 2.6×1.4×6.5in (6.6×3.5×16.5cm)
- 150W with detachable line cord
- 100-240V, 50-60Hz universal input
- 12VDC @ 12.5A

STORAGE

Four removable 24TB, 18TB, or 12TB hard drives (96TB, 72TB, or 48TB total)
96TB configuration:
- Stores ~1,600 Kaleidescape high-bitrate 4K movies, ~2,600 HD movies, or ~14,400 SD movies
72TB configuration:
- Stores ~1,200 Kaleidescape high-bitrate 4K movies, ~1,950 HD movies, ~10,800 SD movies
48TB configuration:
- Stores ~800 Kaleidescape high-bitrate 4K movies, ~1,300 HD movies, ~7,200 SD movies

RACK MOUNT (sold separately)

Rack shelf available for mounting one unit in a 19in rack, 2RU space

DIMENSIONS

7.87×1.52×14.33in (W×H×D)(20.0×3.9×36.4cm)

WEIGHT

7.2lbs (3.3kg)

FAN AND DRIVE NOISE

Typical: 25 dB(A)

POWER

Max consumption: 29W
Typical: 24W
External power adapter:
- 2.6×1.4×6.5in (6.6×3.5×16.5cm)
- 150W with detachable line cord
- 100-240V, 50-60Hz universal input
- 12VDC @ 12.5A

STORAGE

One integrated 24TB or 8TB hard drive
24TB configuration:
- Stores ~350 Kaleidescape high-bitrate 4K movies, ~600 HD movies, or ~3,300 SD movies
8TB configuration:
- Stores ~130 Kaleidescape high-bitrate 4K movies, ~220 HD movies, or ~1,200 SD movies

RACK MOUNT (sold separately)

Rack shelf available for mounting one or two units in a 19in rack, 1RU space

Brand

Kaleidescape

For almost 20 years, Kaleidescape has sold some of the finest home movie players available. Kaleidescape Movie Servers are perfectly suitable for homes and yachts, offering stunning 4k Ultra HD graphics at 60 frames per second. Each system is capable of being integrated with modern AV controls to enable many cinematic features. This includes automatic dimming, screen masking, and more. The mission of Kaleidescape is to provide the finest cinematic experience to movie lovers so they can enjoy their favorite films in the best quality available anywhere.

Over the years Kaleidescape has perfected its home movie players for a truly pleasurable viewing experience. Specifically, products like the Strato offer top-shelf quality to consumers looking for the best in home entertainment. With an internal hard drive built in, these machines have the capability of storing approximately 300 high definition movies. Strato movie players also support lossless multichannel audio and are capable of playing HDR content on both televisions and projectors. Overall, Kaleidescape has designed highly distinguished movie players that offer some of the highest quality available thus far.

Overture is a proud dealer of Kaleidescape Movie Servers, selling customers the best movie players from Kaleidescape. Interested in purchasing a new Kaleidescape component? You can trade-in any component towards a Kaleidescape product by filling out our Trade-In Form.

Kaleidescape Compact Terra Prime 8TB

To Order this product, call us: 800-838-1812
