$1,200.00

High Output Moving Coil

If you have a trade-in, request Trade-in Price.



Product Description

Hand-Made Hana MH and ML Moving-Coil Cartridges Offer Outrageously Good Performance: Precisely Fit into Vinyl Grooves, Extract Rich Detail, Provide Stellar Damping, Play with Lush Linearity

Higher-specifications parts, extra-pure copper wiring, Delrin cartridge bodies, cryogenically processed materials, and threaded headshell fittings all equate to deluxe performance from Hana M Series MH and ML moving-coil cartridges. Devised to more precisely fit into vinyl grooves and provide exceptional damping, the Japanese-made models extract information with archeological-like purpose and expertise – all while proving among the most linear, extended, dynamic, and consistent cartridges anywhere near their price class. The only difference between the models: MH is high-output (2mV) while ML is low-output (0.4mV).

Befitting its name, the hand-assembled M Series uses a nude microline stylus that mimics the form of a cutting stylus and fits more precisely into the vinyl groove. The design also enhances tracking to capture the most delicate details with better frequency reproduction, imaging, and resolution. In the moving-coil windings themselves, high-purity copper wire offers greater clarity. ML features a new low-impedance generator for optimized performance with a broader range of phono preamps.

Injection-molded from Delrin, a high-tech polymer with improved mechanical characteristics for better resonance damping, M Series’ cartridge bodies reveal copious amounts of low-level information and extend the dynamic range. Metal threaded fittings for headshell-mounting hardware are also built into the body, offering easy attachment and superior mechanical interface for attention-getting bass and frequency response. The body also features an integral machined brass cap for constrained-mode layer damping. And its 9.5-gram weight provides stellar compatibility with a wider range of tonearms and turntables.

Cryogenic processing, which restructures metals at the molecular level, is especially beneficial in Alnico-based magnetic electro-motive circuitry (cartridge signal generator). Cryogenically treated M Series parts include the front yoke as well as center and rear components, yielding more a precise and controlled magnetic flux field for greater linearity and overall sonics.

In sum, Hana M Series has everything – and much more – offered by many more expensive cartridges. If you haven’t yet experienced the gorgeous sound afforded by Hana, there’s never been a better time.

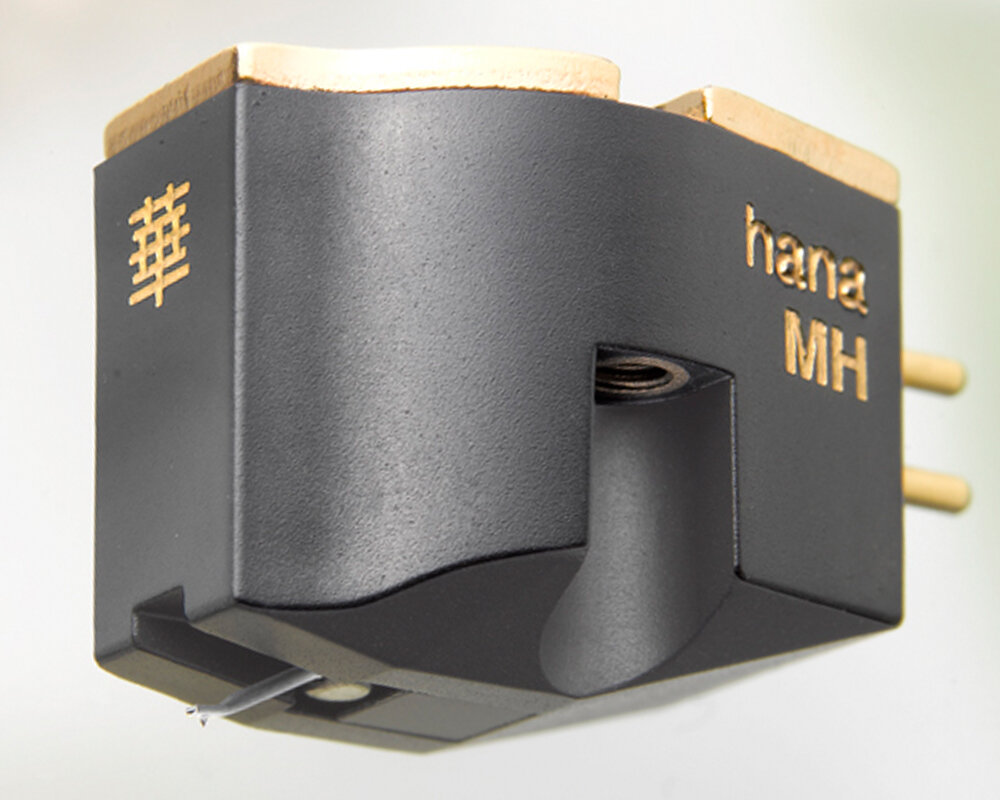

MH
Stylus: Nude Microline tip
Cantilever: Aluminum
Magnet: Alnico
Magnetic circuitry: Pure Iron/Cryo treatment
Coil wire: High Purity Copper
Cartridge Housing: POM (Delrin)/Brass
Output level: 2mv/1KHz
Output balance: <1dB/1KHz
Vertical Tracking force: 2gr
Trackability: 70μ/2gr
Compliance: 10 x 10-6 cm/dyne
Channel separation: 30dB/1KHz
Frequency response: 12-45,000Hz
Impedance: 130Ω/1KHz
Suggested lord Impedance: 47KΩ
Cartridge weight: 9.5g
Body Color: Black

Brand

Hana

For over 50 years, Excel Sound Corporation has crafted some of the most distinguished products in the audio industry. The brand’s Hana collection is no exception, with some of the best moving-coil phono cartridges on the market. Built by some of the finest craftsmen in Japan, each stereo cartridge offers stunning quality and performance. The mission of Hana is to design world-class moving-coil phono cartridges to value-seeking music lovers around the world who demand the finest analog reproduction.

The Hana EH and EL are the brand’s most popular cartridges, seamlessly combining performance and affordability like no other. Both high output (EH) and low output (EL) models provide a noticeably improved difference in sound compared to stock turntable cartridges. Additionally, the Hana EH and EL were bestowed the well-deserved 2017 Editors’ Choice Award by The Absolute Sound. The Hana MH and ML phono cartridges are the ultimate models in both design and performance. Their unique design enhances tracking to capture the most delicate details with better frequency reproduction, imaging, and resolution. For superb playback quality and the most up-to-date technologies available, the M series is the superior choice.

Overture is a proud dealer of Hana products, selling customers the best moving-coil phono cartridges from Hana. Interested in purchasing a new Hana component? You can trade-in any component towards a Hana product by filling out our Trade-In Form.
