Hybrid Floorstanding Loudspeaker, with Four 8.5” Active Bass Drivers & Anthem Room Correction

$17,500.00 Each

If you have a trade-in, request Trade-in Price.

(each)

SKU: aad-paradigm-Persona 9H Category: Tags: ,
Description

Description

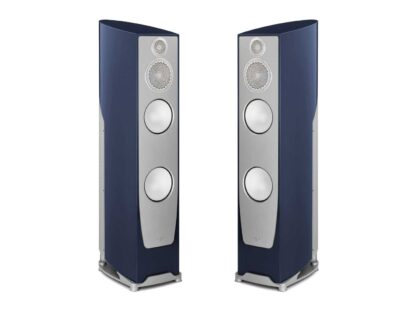

Persona 9H

Hybrid Floorstanding Loudspeaker, with Four 8.5” Active Bass Drivers & Anthem Room Correction (ARC™)

Persona 9H, the flagship of the Persona Series, is the best- sounding loudspeaker we have ever conceived.

Persona 9H features Truextent® Beryllium 1” tweeter and 7” midrange drivers, each with perforated phase-aligning lenses. This passive mid and high frequency section delivers more accurate wide-spectrum dynamics (from a detailed well-blended 40kHz down to a deep 500Hz) while remaining virtually transparent; your audio alone takes center stage.

The powered bass section utilizes our Ultra- High-Excursion Differential Drive 8.5” woofers in a balanced vibration-canceling configuration (two front-firing, two rear-firing). Each woofer pair is powered by a separate DSP-controlled 700 W RMS amplifier for a total of 1,400 W RMS (2,800 W Dynamic Peak), and combined with exclusive technology like Anthem Room Correction (ARCTM) capability for precise optimization of bass performance for any listening environment.


Persona 9H Specifications



Design 6-driver, 3-1/2 way hybrid floorstanding with active bass acoustic suspension
Crossover 3rd order electro-acoustic at 2.4 kHz (tweeter/mid), 3rd order @ 400 Hz (mid/front bass), 2nd order @ 200 Hz (rear bass)
Amplifier Each woofer pair is powered by a separate DSP-controlled 700 W RMS amplifier for a total of 1,400 W RMS (2,800 W Dynamic Peak)
Room Correction Anthem Room Correction – ARC™, with included calibrated microphone
Frequency Response
On-Axis
±2dB from 19 Hz – 45 kHz
Frequency Response
30° Off-Axis
±2dB from 19 Hz – 20 kHz
High Frequency Driver 1″ (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly
Mid/Bass Frequency Driver 7″ (178mm) Truextent® Beryllium driver with Inverse Differential Drive Neodymium motor, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1.5″ high-temp voice coil
Low Frequency Driver Four 8-1/2″ (215 mm) ultra-high-excursion X-PAL™ drivers with Differential Drive motor, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5″ high-temp dual voice coil
Low Frequency Extension 15 Hz (DIN)
Sensitivity
Room / Anechoic
96 dB / 93 dB
Impedance Compatible with 8 ohms
Suitable Amplifier Power Range 15 – 500 watts
Maximum Input Power 400 watts
Finishes High Gloss: Vanta Black, Harmony White
Metallic Gloss: Aria Blue, Sonic Silver
Weight 190 lbs. (86 kg)
Dimensions
HxWxD
51.75″ × 11.875″ × 20.5″
(132cm × 30cm × 52cm)
Brand

Brand

Paradigm

For over 30 years, Paradigm has set the standard for innovation and technology in loudspeaker manufacturing. Precision. Consistency. Long-term reliability. These are inherent characteristics of even the smallest Paradigm component part. The technology and design of Paradigm’s speakers represent true innovation in the pursuit of perfection in audio reproduction. The new Prestige Series builds on this history by combining new technologies with smart engineering for astonishing performance at an incredible value. To experience the incredible sound of Paradigm speakers at their best, please visit Overture. If you are interested in purchasing Paradigm speakers, you can trade-in other speakers or electronic component on them by filling out our Trade-In Form.
