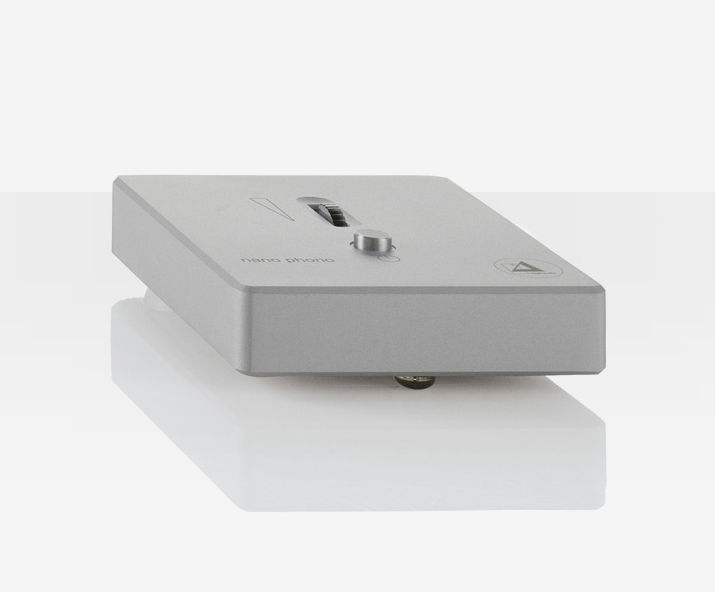

The nano phono V2 phonostage isn’t ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.
The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
AMPLIFICATION | 34 dB (MM mode) 65 dB (MC mode) |
INPUT LOAD | 47 kOhm / 220 pF / MM mode User MC mode |
MM / MC INPUT | switchable (at bottom) |
SUBSONIC FILTER | switchable (at bottom) |
RIAA | Nach RIAA (Zeitkonst.: 75 μs / 318 μs / 3180 μs) |
RIAA ACCURACY | ± 0.4dB @ 20Hz-50kHz |
THD | < 0,04% |
HEADROOM | 18 dB / MC |
SIGNAL TO NOISE RATIO | 81 dB (A) (MM – Mode) 70 dB (A) (MC – Mode) |
CHANNEL SEPARATION | > 80dB @ 1kHz |
MAX. OUTPUT VOLTAGE | 10V eff. (1kHz) |
POWER CONSUMPTION | Max. consumption: 2.3 Watt in operation: 2.3 Watt Standby mode: < 0.3 Watt Off mode: 0.0 Watt |
POWER SUPPLY | ±18V DC / 300mA (external power supply) |
OUTPUTS | unbalanced (RCA) |
WEIGHT | Approx. 500 g (preamp and power supply) |
DIMENSIONS (W/D/H in inches) | 3.35 x 4.17 x 0.98 |
DIMENSIONS (W/D/H in mm) | 85 x 106 x 25 |
WARRANTY | 3 years* * Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase. |
