Product Description
The McIntosh MEN220 Room Correction Processor is eligible for Overture’s trade-in program for an in-store sale. As America’s premier McIntosh audio dealer, we can give you the most for any audio equipment you would like to trade-in on a McIntosh MEN220 Room Correction Processor. You can request a trade-in price by filling out our trade-in form.

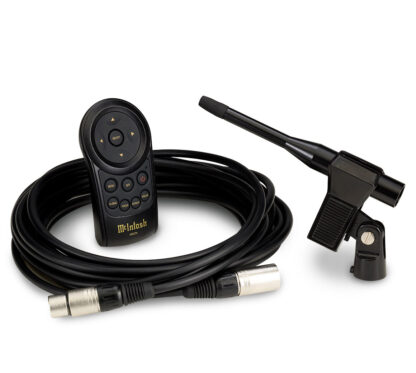

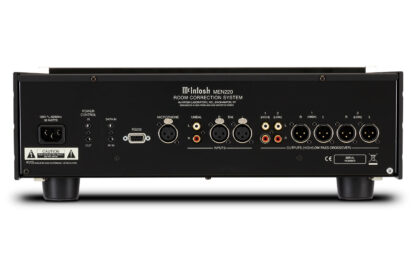

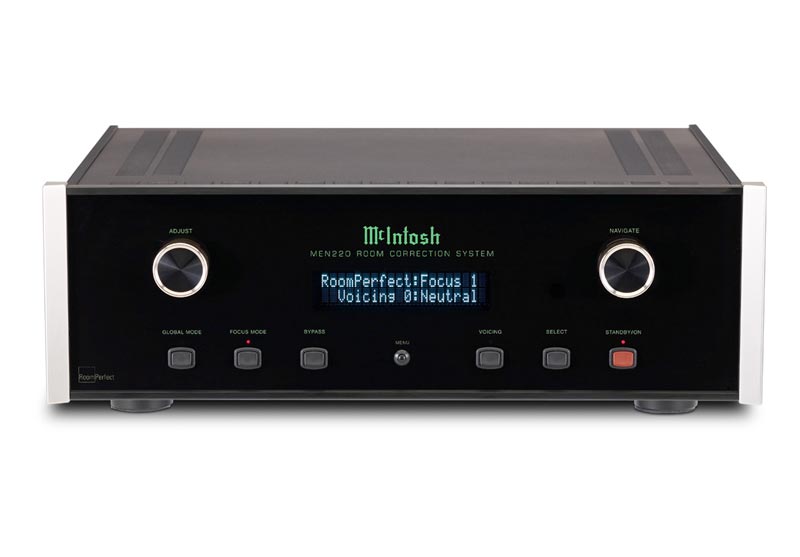

Delivers a potent suite of Room Correction, Custom-EQ and 2-Way Crossover capabilities in one easy-to-use stereo component. While any single feature of the MEN220 has the power to optimize the sonic characteristics of the highest quality audio systems, combining the features can reveal a level clarity and resolution unattainable by any other means. Full system control and PC link are provided via RS232 while McIntosh Data, Power Control and IR inputs offer additional remote control flexibility. Both single-ended and balanced connections are supported; a hand-held, IR remote control is included.
Audio Specifications
Unless otherwise noted, the below MEN220 Specifications where taken with RoomPerfect set to Bypass Mode and Voicing Mode set to Neutral.
Crossover Filter Types, Order and Slope
Butterworth, 1st order, 6 dB/octave
Butterworth, 2nd order, 12 dB/octave
Butterworth, 4th order, 24 dB/octave
Linkwitz-Riley, 2nd order, 12 dB/octave
Linkwitz-Riley, 4th order, 24 dB/octave
Linkwitz-Riley, 8th order, 48 dB/octave
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Input Impedance
10K ohms Unbalanced and Balanced
Maximum Input Voltage
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
Maximum Output Voltage
4.5V Unbalanced and Balanced (Preamp-Power Amp)
2.25V Unbalanced and Balanced (Processor Loop)
Output Impedance
50 ohms
Signal To Noise Ratio (A-Weighted)
100dB
Total Harmonic Distortion
0.002% from 20Hz to 20,000Hz
Voltage Gain
0dB
General Specifications
Overall Dimensions
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 18 inches (45.72cm) including the Front Panel, Knobs and Cables
Power Requirements
100V ~ 50/60Hz at 35 watts
110V ~ 50/60Hz at 35 watts
120V ~ 50/60Hz at 35 watts
220V ~ 50/60Hz at 35 watts
230V ~ 50/60Hz at 35 watts
240V ~ 50/60Hz at 35 watts
Standby, less than 1 watt
Shipping Carton Dimensions
Width is 26-1/2 inches (67.3cm)
Depth is 24-1/4 inches (62.2cm)
Height is 11-3/4 inches (29.9cm)
Weight
25.5 pounds (11.6 kg) net, 41.9 pounds (19.0 kg) in shipping carton
