$2,499.00

Integrated Amplifier

If you have a trade-in, request Trade-in Price.
SKU: fac-MAR-MOD30 Category: Tags: ,
Description

Description

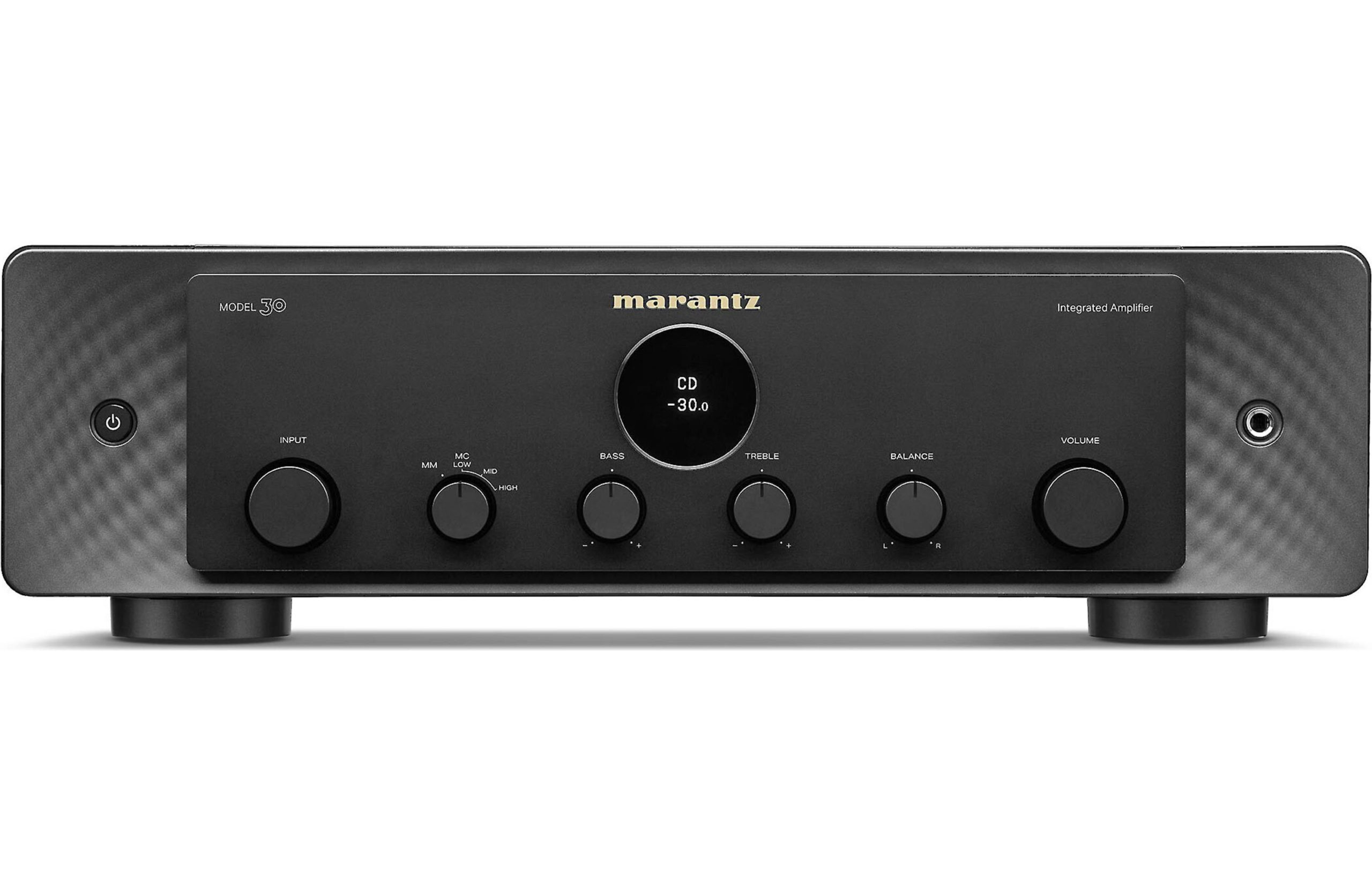

Get the most musical sound possible from this beautiful, integrated amplifier. Exquisitely tuned by the Marantz Sound Master, the MODEL 30 integrated amplifier features a master-curated Marantz HDAM and a fully discrete design for luxurious Hi-Fi purity. Designed to last the test of time and make all your music unforgettable.

Key Features:

  • Custom-built preamplifier with Marantz HDAM technology.
  • Tuned with passion by the Marantz Sound Master.
  • Output: 100W + 100W (8ohm), 200W + 200W (4ohm).
  • Fully-discrete design for signal purity.
  • Custom HDAM®-SA3 circuitry for clean, optimal dynamics.
  • Separate amp and preamp power supplies reduce interference.
  • Toroidal transformer dedicated to preamp for clarity and power.
  • Current feedback preamp design with its wide-range circuitry.
  • MM/MC Phono input with its Premium Phono EQ circuit.
  • Brass machined input terminals for CD and Phono.
  • Marantz original high-quality/high-purity copper speaker terminals.
  • Linear volume control with new electric volume system.
  • Amplifier design inherited from our flagship models.
  • Available in Black and Silver Gold.

Technical Specifications:

  • Output Power
  • Rated Output Power: 100W + 100W (8ohm), 200W + 200W (4ohm)
  • Features
  • Amplifier Circuit: Switching Amplifier
  • Power Transformer: Toroidal w/ case
  • Volume: Electric
  • Bass / Treble / Balance Control
  • Source Direct
  • Wide Range: 5Hz – 50kHz
  • Total Harmonic Distortion: 0.005% (1kHz, 8Ω)
  • Damping Factor: 500
  • Input Sensitivity Phone input: MM: 2.3 mV / 39 kohm, MC: 250 μV / 100 ohm
  • Input Sensitivity CD/LINE/RECORDER: 220 mV / 13 kohm
  • Input Sensitivity Power Amplifier input: 1.1 V / 13 kohm
  • Signal to Noise Ratio: PHONO (MM): 88dB, PHONO (MC): 75dB, CD: 107dB

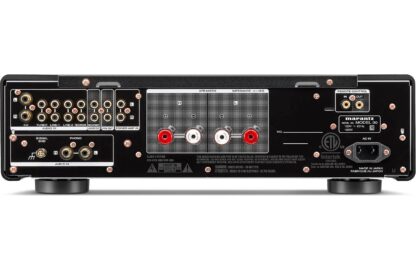

  • Terminal
  • Phono Input: yes (MM/MC), Marantz Musical Premium Phono EQ
  • Ext. Pre Input (Power Amp Direct)
  • Preout
  • Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out: 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals
  • Speaker Terminal: Marantz Original SPKT-100+
  • Remote Control Bus Terminal: yes (Cinch)
  • UI
  • Display: yes (Porthole, OLED)
  • Control
  • App Control via Network Player
  • System Remote Controller: (New system remote controller to control SACD 30 and MODEL 30)
  • Other
  • Unit (W x H x D in inches): 17.4″ x 5.1″ x 17”
  • Packaging Dimensions (W x H x D in inches): 20” x 10.1” x 20.6”
  • Weight: 32 lbs 3 Oz
  • Packaging Weight: 37 lbs 8 Oz
  • Power Consumption: 130W
  • Power Consumption at Standby: 0.2W
  • AC Inlet
  • Quick Start Guide: Paper
  • Cosmetic
  • Panel Color: SG / BK
  • Front Center Panel: Aluminum
  • Side cover: Aluminum
  • Top cover: Steel
  • Edge-lighting: yes (Dimmer)
  • Volume Knob: Aluminum
  • Input Selector: Aluminum
  • Bass/Treble/Balance/ REC Out Sel knobs: REC Out–>PHONO (Aluminum)
  • Power button: Aluminum
  • Side screw: Copper plated
  • Chassis Material: SECC
  • Chassis Layer: Triple
  • Foot: New (PM6006 type)
Brand

Brand

Marantz

For more than half a century, Marantz has been one of the biggest names in home entertainment. Their CD players and A/V receivers are some of the best in the industry today. Marantz is truly passionate about sound which is why they strive for technical excellence with every product they release. The mission of Marantz is to continue the pursuit of pure musical reproduction by releasing the most distinguished products achievable. The skilled hands of world-renowned acousticians have created every Marantz hi-fi audio component on the market. An example is the Marantz SA-10 – an SACD/CD player setting new standards with music on disc or high-resolution digital files.. Marantz A/V receivers are equally renowned. Marantz has been designing and producing reference quality products for over 60 years, Marantz only provides remarkable models with some of the best sounds available. Overture is a proud dealer of Marantz products, selling customers the best CD players and A/V receivers from Marantz. Interested in purchasing a new Marantz component? You can trade-in any component towards a Marantz product by filling out our Trade-In Form.
Additional information

Additional information

Weight 8 lbs
Dimensions 12 × 18 × 70 in
